City

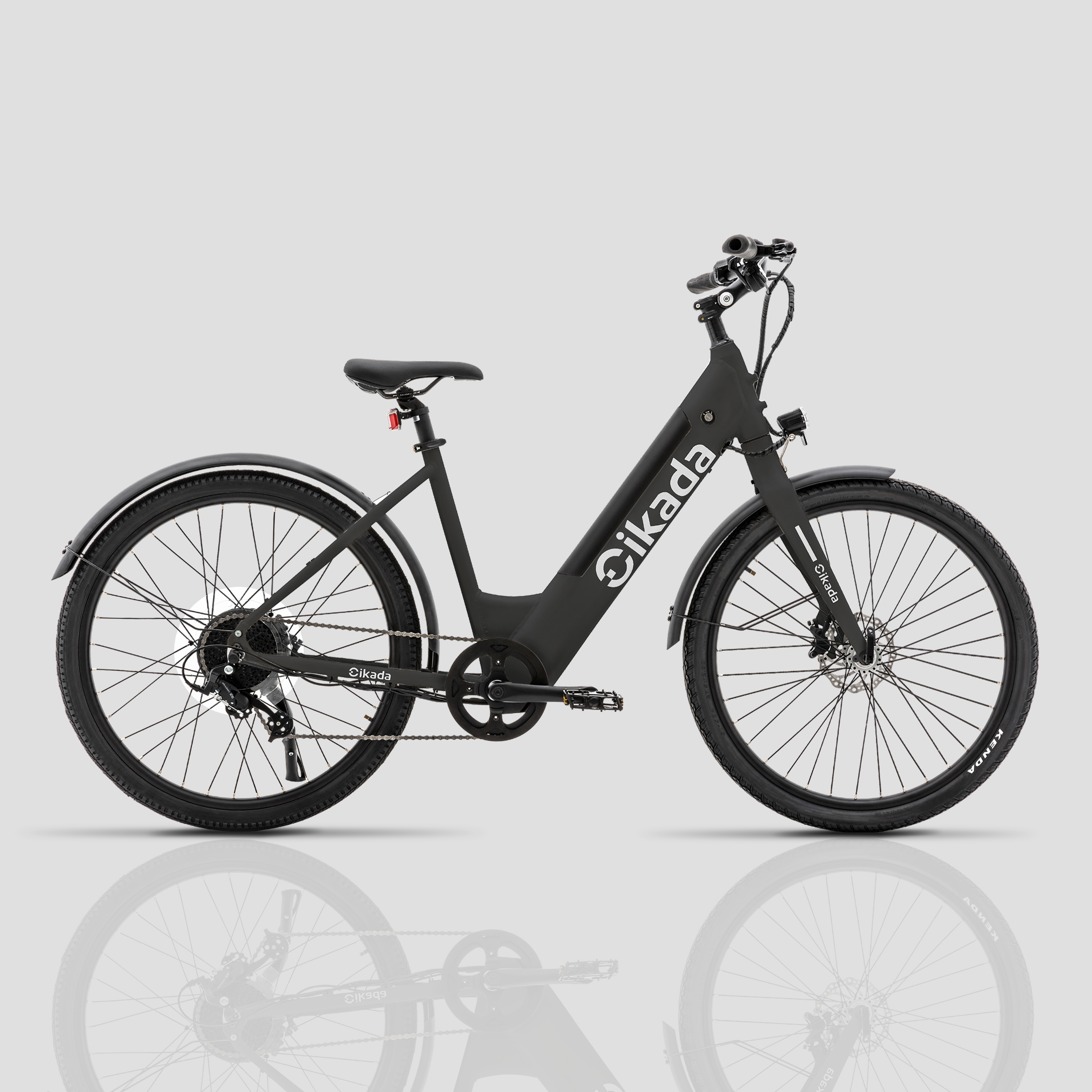

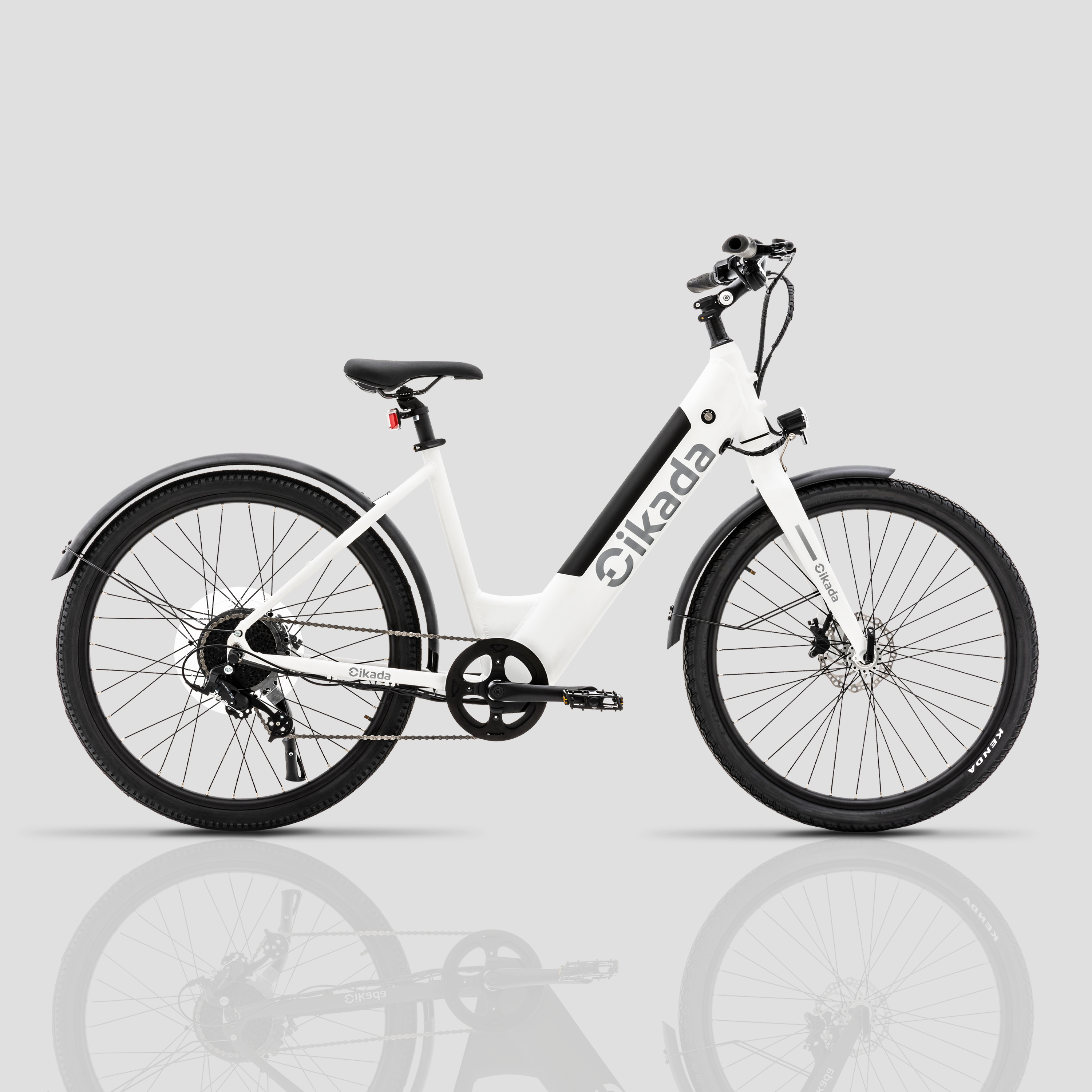

The Cikada City e-Bike, your perfect partner for city commutes, leisurely town rides, and adventurous explorations, redefines green transportation with its modern and enjoyable approach. This stylish, reliable, and versatile bike, with a top assisted speed of 25kph (15.5mph), five pedal assist modes, and an impressive range of up to 90km (56mi), opens up a world of outdoor adventures.
Experience the beauty of nature, embrace sustainable travel, and let the City handle your ride’s details with its clear and user-friendly LCD display, complete with Bluetooth connectivity. The Cikada app allows you to manage, customise, and analyse your ride, optimising performance and keeping you in full control as you traverse your favourite routes.
Monitor your achievements, review past ride metrics, check your bike’s status, and more, all at your fingertips. Powered by a robust BaFang H400B 250W rear hub motor and a large LG 480Wh battery, the City promises a smooth e-Biking experience, providing the boost you need to go further with less effort.
With its added speed and riding ease, the City smooths out your journey, making your urban commutes and countryside rides as efficient and enjoyable as possible. Enjoy the ride!
City e-Bike Highlights
- Maximum Range: 90km (56mi)
- Maximum Assisted Speed: 25kph (15.5mph)
- Integrated LG 480Wh battery with a complete charge from flat within 6-8 hours
- Plenty of power to tackle hills with 40nm of torque
- Clear LCD display with Bluetooth connectivity and 5 pedal assist levels
- Hydraulic disc brakes and a rigid fork for enhanced durability and added safety
- Versatile and sturdy hybrid for everyday use, city commuting, and leisure riding
- Smooth, comfortable ride
Shipping and Returns
Share some content to your customers about your products.
Choose options
Highlighted features that make the City e-Bike special
Ultimate Performance
Motor
BaFang H400B 250W rear hub motor
Tyres
Kenda, 27.5*2.00 Anti-puncture
Battery
LG 480Wh (48V/10Ah) LG 21700
Maximum Range
90km (56mi)
Torque Sensor
BaFang SR PA221.32.ST.C B.B.
Sustainable, minimalist design
The City has been designed to reflect a conscious , sustainable way of living.
Long range
The Cikada City Hybrid e-Bike is your urban explorer, designed to take you up to 90km (56mi) on a single charge. Perfect for city commutes and leisurely countryside rides, it ensures you can enjoy extended adventures without the concern of running low on power. Its efficient design is ideal for those looking to maximise their journey's length with ease and comfort.
Battery

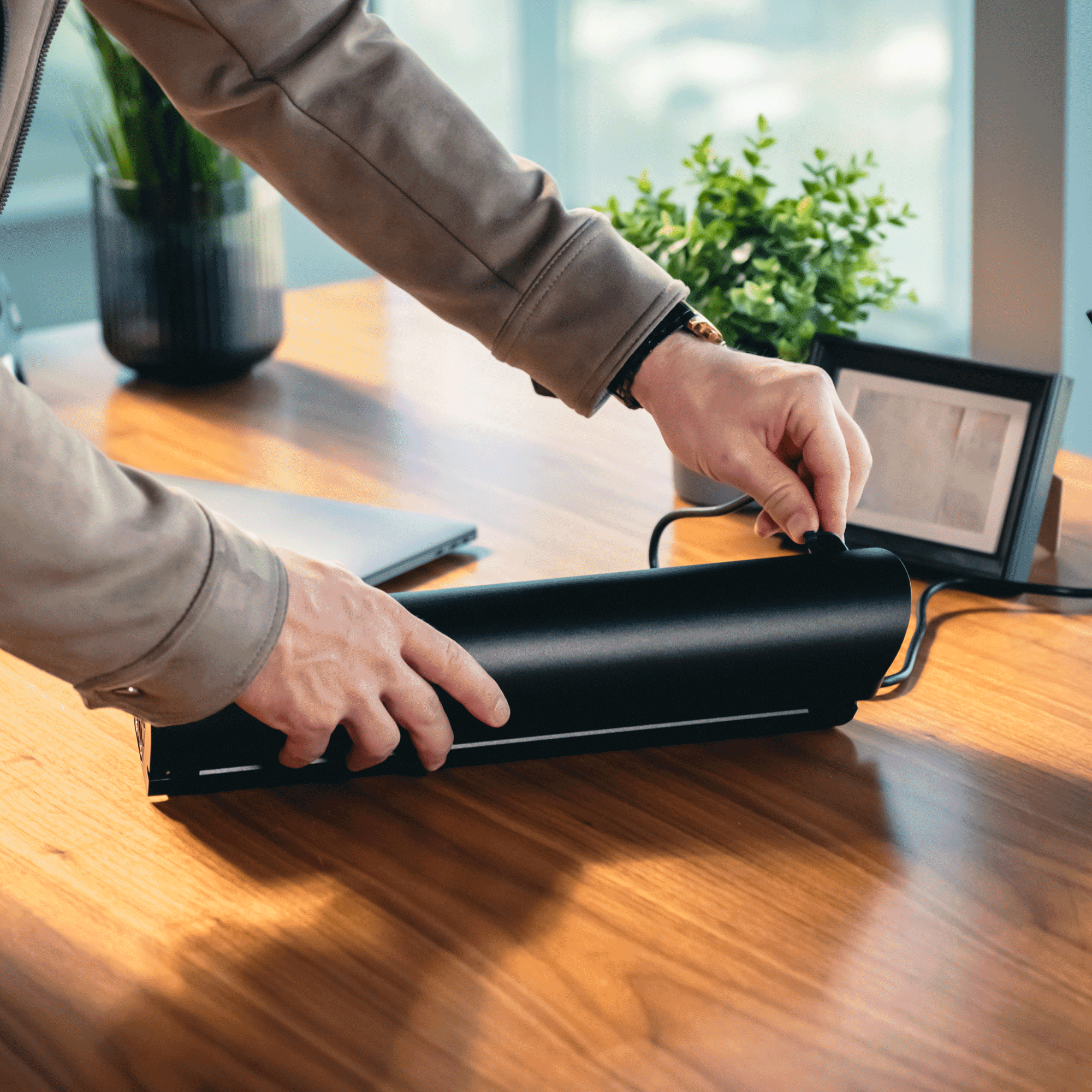

Powered by a large LG 480Wh battery, the Cikada City Hybrid e-Bike offers a blend of endurance and practicality for the urban adventurer. The battery’s quick recharge time of 6-8 hours ensures that your e-Bike is ready to go when you are, supporting your lifestyle with reliability and convenience. Its removable feature adds flexibility for charging.

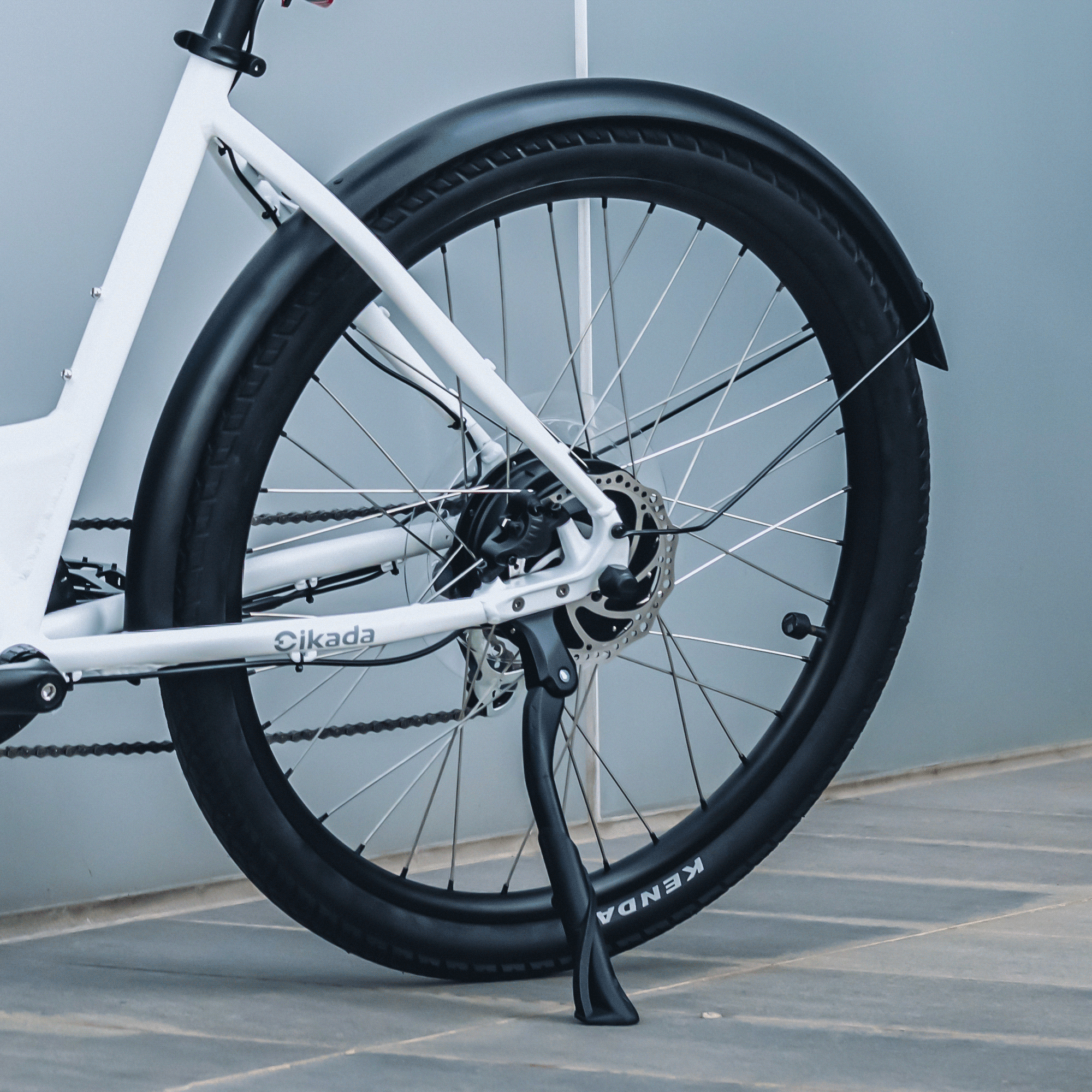

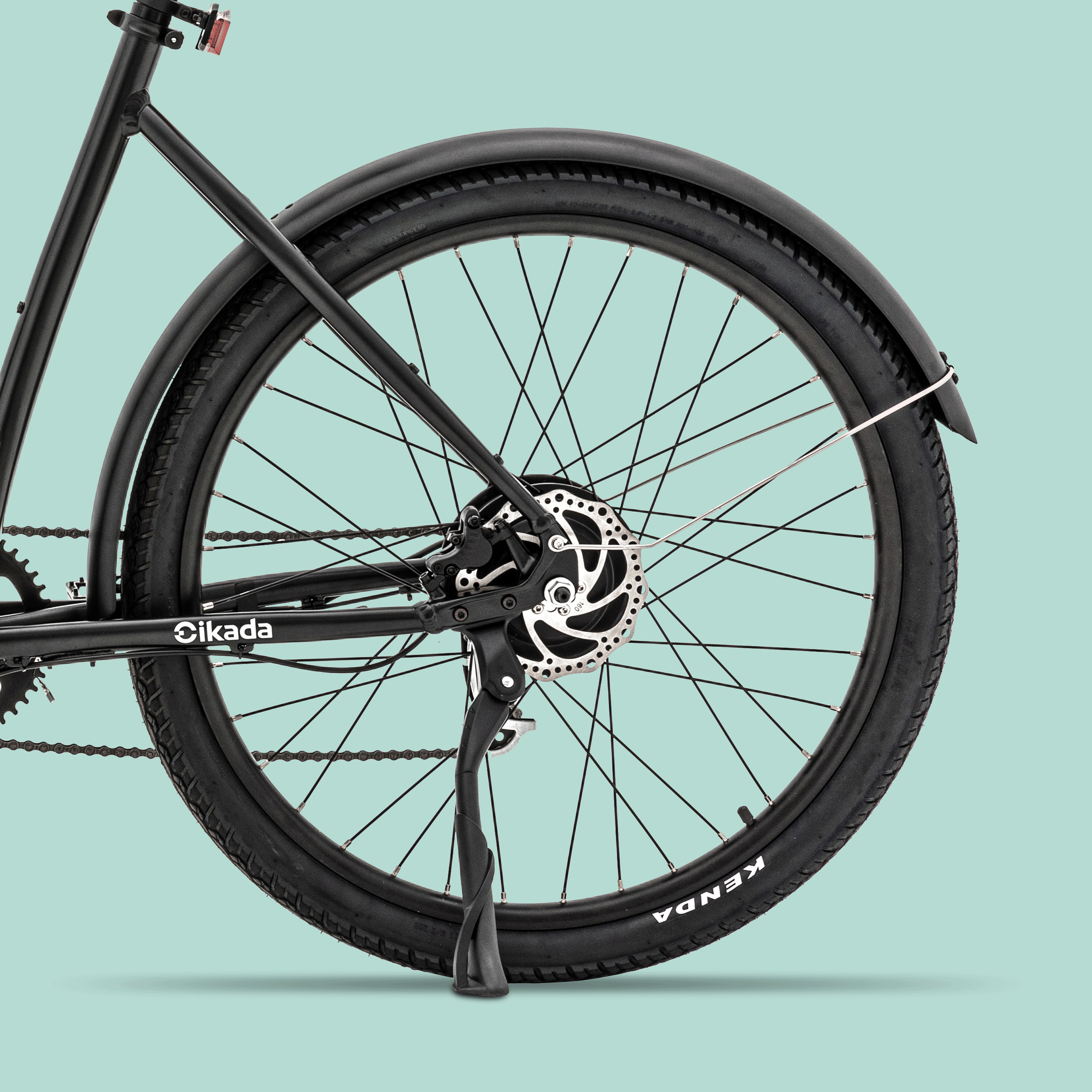

Motor
Featuring a BaFang H400B 250W rear hub motor, the Cikada City e-Bike is equipped with 40nm of torque, providing plenty of power to tackle city hills and make cruising through urban landscapes effortless. This motor ensures a seamless and enjoyable e-Biking experience, making every ride smooth and efficient, regardless of the terrain.
Technologies

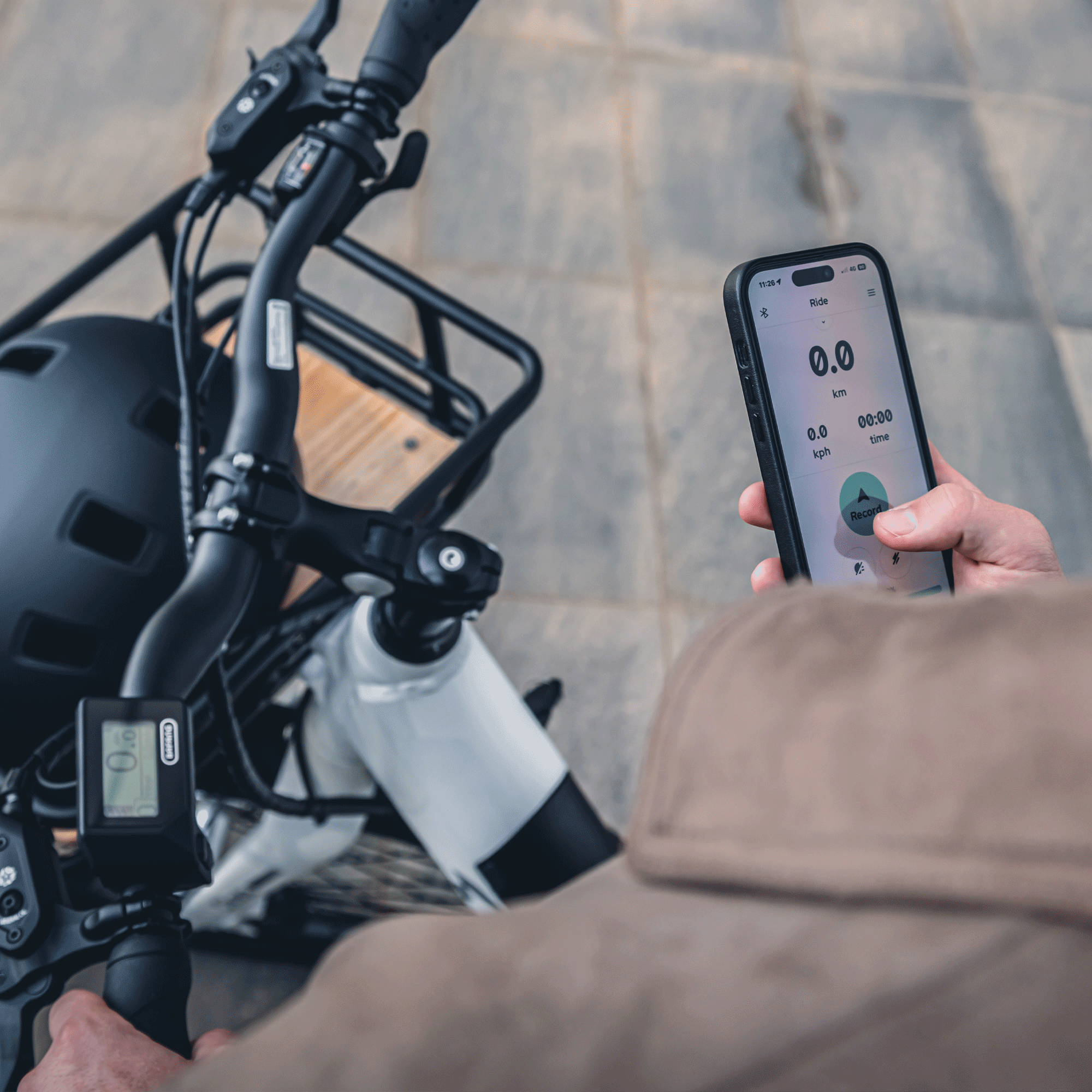

The Cikada City Hybrid e-Bike integrates cutting-edge technology to enhance your cycling experience. With a clear LCD display and Bluetooth connectivity, it allows for easy interaction with the Cikada app. This enables you to manage rides, customise settings, and analyse performance data effortlessly. The hydraulic disc brakes and rigid fork offer a combination of safety, durability, and smooth handling, making every ride a pleasure.

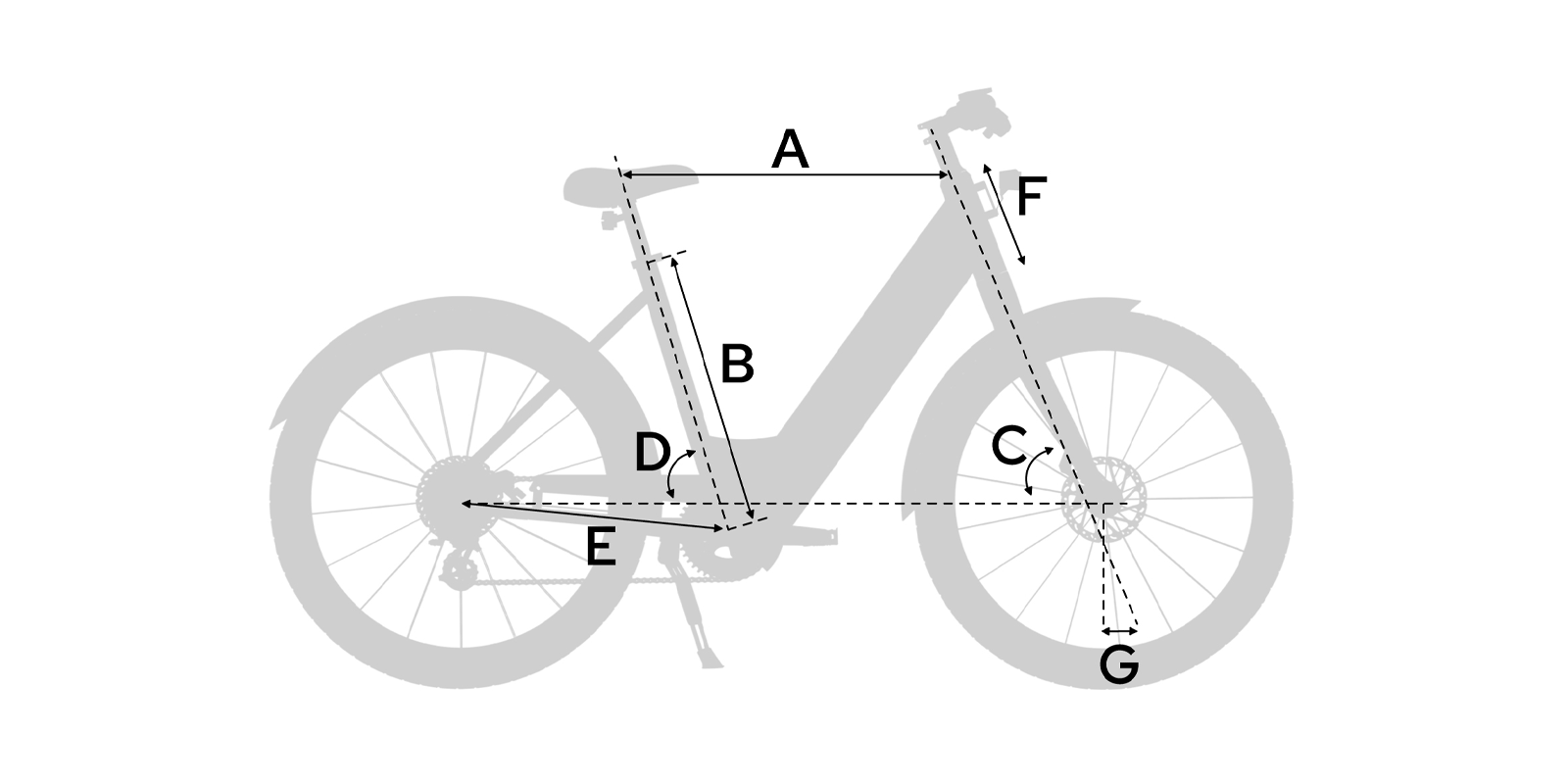

City e-Bike Geometry
City has been designed with ergonomics and sleek aesthetics in mind to seamlessly blend into your way of living.
| Part | Medium | Large |
|---|---|---|
| A - Effective Top Tube | 623mm (24.5″) | 621mm (24.4″) |
| B - Seat Tube Length | 480mm (19″) | 530mm (20.8″) |
| C - Head Tube Angle | 69° | 69° |
| D - Seat Tube Angle | 72.5° | 72.5° |
| E - Chain Stay Length | 485mm (19″) | 485mm (19″) |
| F - Head Tube Length | 185mm (7″) | 200mm (8″) |
| G - Trail | 80mm (3.2″) | 80mm (3.2″) |
Detailed Specification
Full specification and detailed explanation of the City e-Bike construction and features.
Power System
Motor: BaFang H400B 250W rear hub motor; 40nm
Sensor: BaFang SR PA221.32.ST.C B.B. torque sensor
Battery: LG 480Wh (48V/10Ah) LG 21700 battery, 6-8h charging time; removable for charging on or off the bike; integrated battery lock for added safety
Controller: BaFang CR C101.C 48V 250W

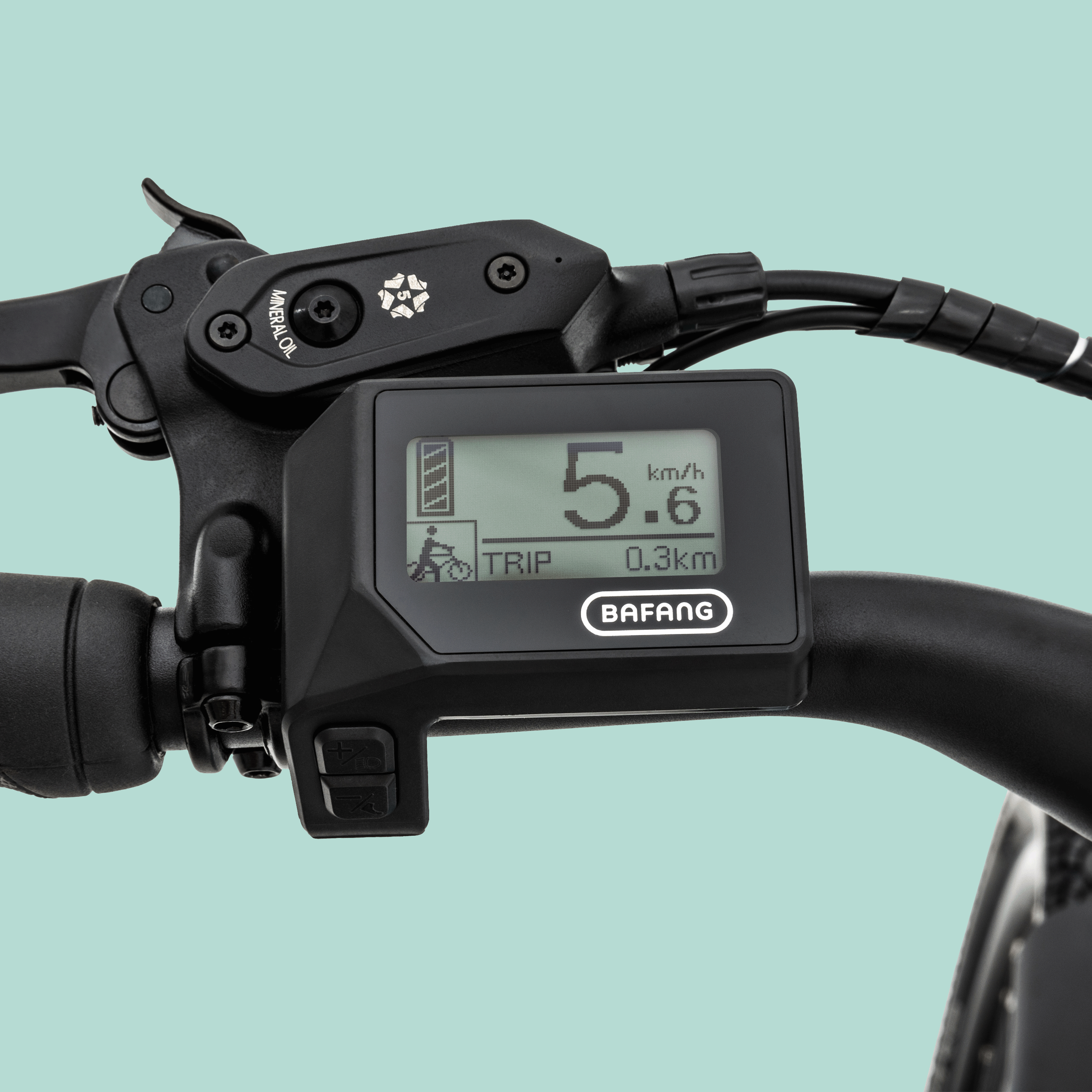

Display: BaFang DP C221.CAN with Bluetooth (5 modes, km/mi switch, walk assistance, battery indicator, lighting control, speed display, time display, motor output power indicator, energy consumption indicator, support levels, information view, error message view)
Frameset:
Frame: 27.5” 6061 aluminium low step frame
Fork: Alloy rigid fork, 10mm x 100mm (0.4” x 4”)
Wheels
Tyres: Kenda, 27.5*2.00 anti-puncture with a reflector strip
Rims: 27.5”, double wall, 36H
Inner Tubes: Kenda A/V
Hub: Front hub, aluminium, OLD 100mm 3.9”), 36H, with QR
Interactivity
Compatible Applications: Cikada app (Riding display/Ride summary/Ride history)
Displayed Data: Real-time speed/current time/battery capacity
Ride Summary: Ride date and time/route/total distance/ total time/average speed/maximum speed/ average HR/maximum HR/calories burned/ CO2 reduced/ speed graph/ HR graph
Ride History: total distance/total time/ CO2 reduced/ total rides
Drive Train:
Crankset: Prowheel 44T 170mm (6.7”), with chain cover
Shift Lever: Microshift TS-39 R, thumb-tap shifters
Rear Derailleur: Microshift RD-M26S
Cassette: Microshift, 8 speed, 11T/34T
Chain: KMC, Z8.3
Pedals: W/CPSC REF, alloy body, 9/16” steel axle, size: 112mm x 108mm (4.4” x 4.3”)
Components

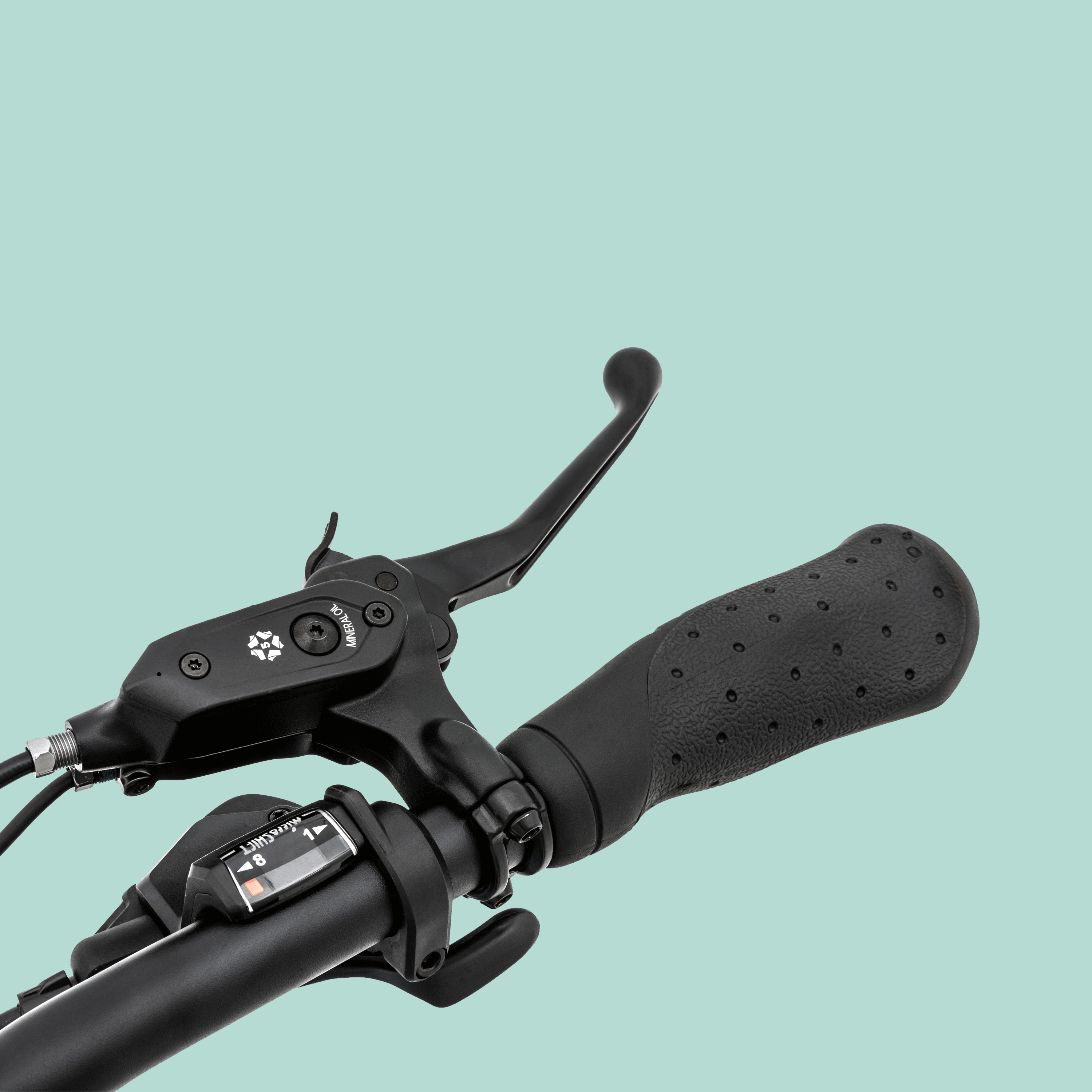

Brakes: Hydraulic disc brakes, rotor 160mm (6.3”); cut off power function

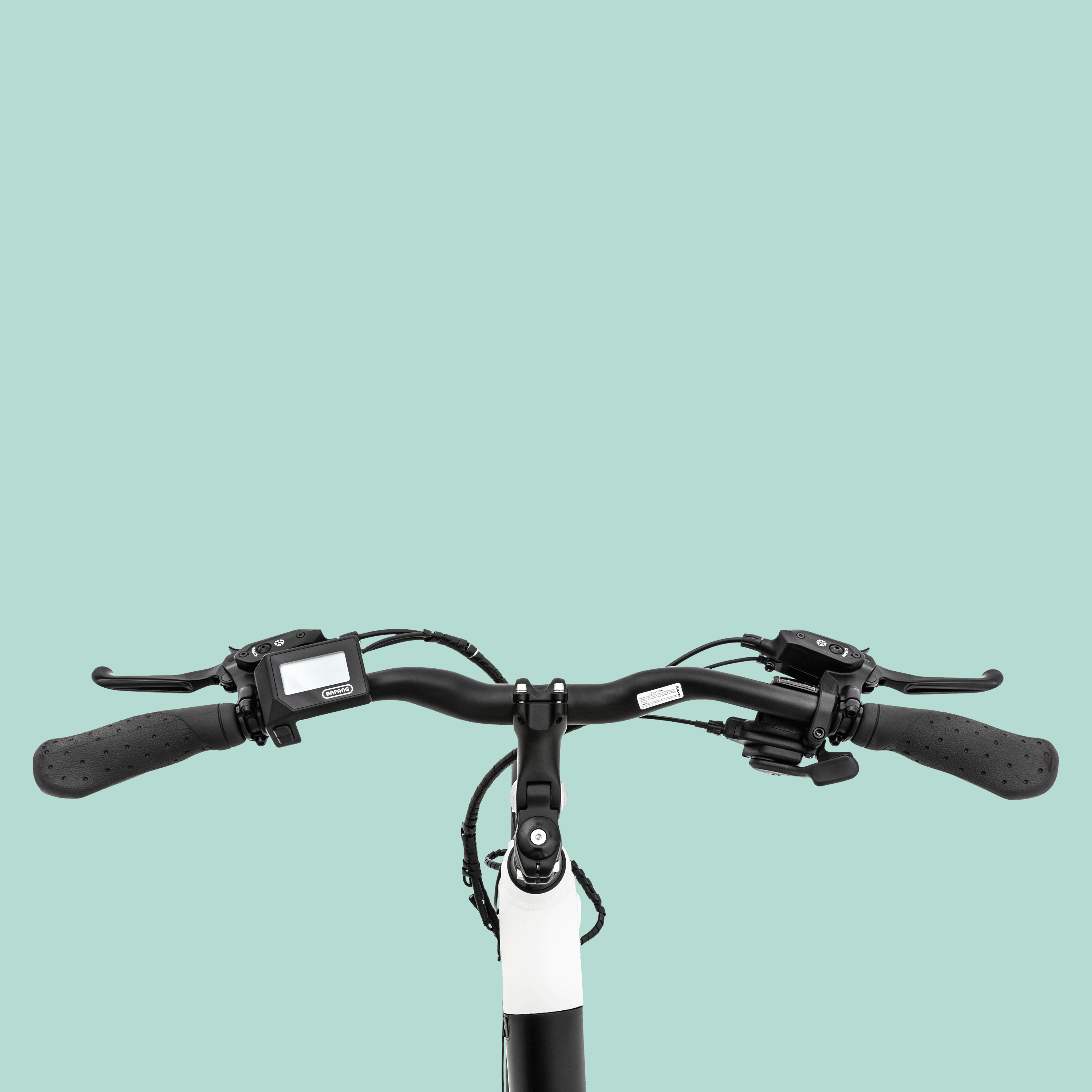

Handlebar: Zoom, aluminium, rise bar; width 680mm (27”), barbore 31.8mm (1.25”)
Stem: Zoom, adjustable aluminium; extension 105mm (4”), barbore 31.8mm (1.25”)
Saddle: Ergonomic leather saddle with a steel seat rail
Seatpost: Zoom, aluminium (31mm x 300mm/ 1.2” x 12” for size L, 31mm x 250mm/ 1.2” x 10” for size M)
Grips: Velo At-rubber/gel
Bottom Bracket: BB73
Additional Information
Product Weight: 26kg (57lbs)
Maximum User Weight: 140kg (309lbs)
Conforms To The Following Standards: EN 15194：2017 (Annex C), EN61000-4-2：2009, EN55012：2007+A1：2009, CISPR 12：2007+A1：2009, GPSD 2001/95/EC (for EU), General Product Safety Regulations 2005 (for UK)
Size Options
M: 19” (48cm) for riders between 5’2”-5’9” (157cm - 175cm) in height
L: 21” (53cm) for riders between 5’5”-6’4” (165cm - 193cm) in height
Accessories
K-Mark front light
Rear light
Sunny wheel mudguards
Reflector
Aluminium kickstand
Warranty
Suspension Fork: 2 years
Electronics (Excluding Battery): 2 years
Battery: Up to 600 charges or 2 years, whichever comes first
Accessories: 1 year
All Other Non-wearing Components: 2 years
