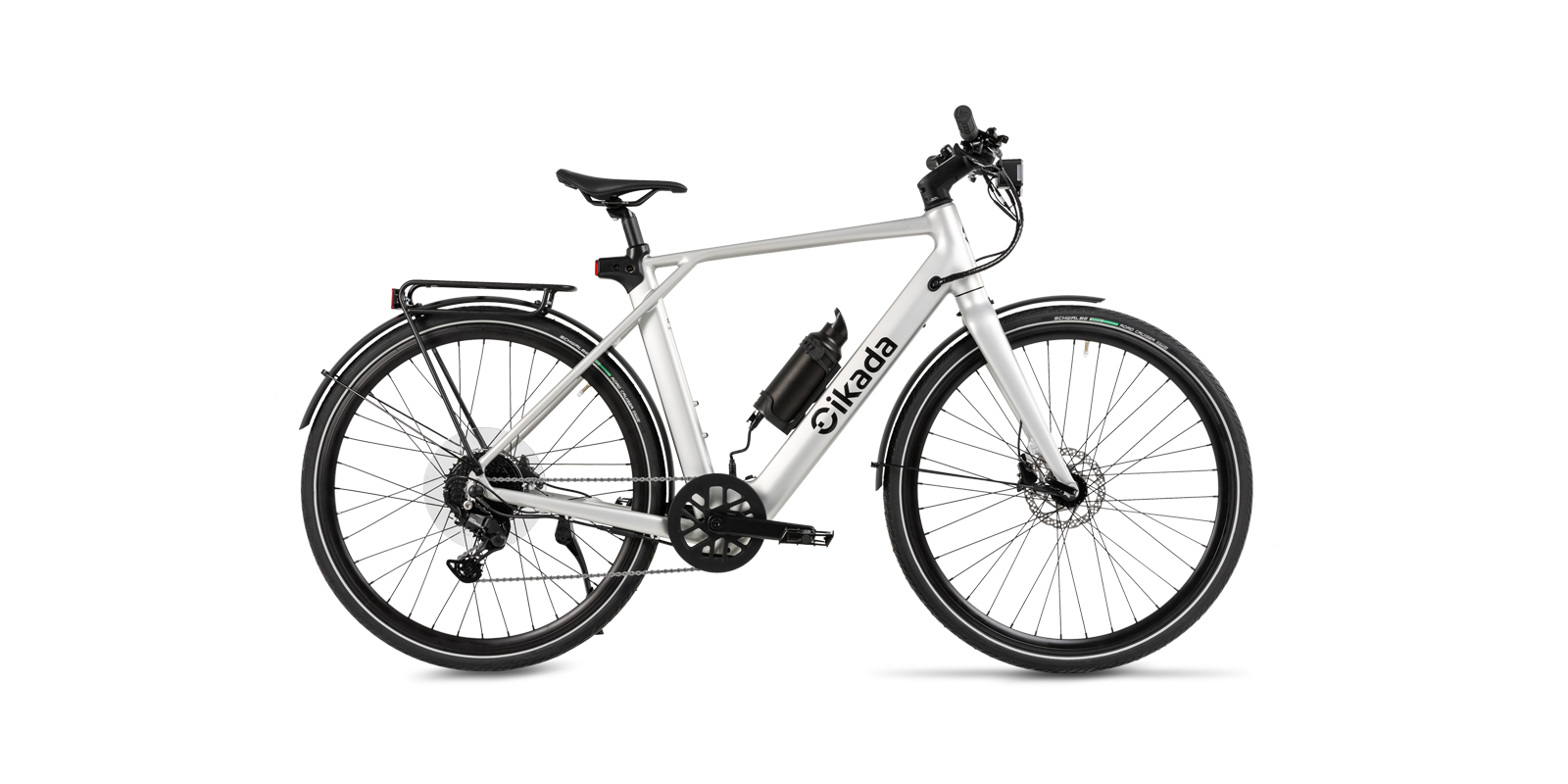

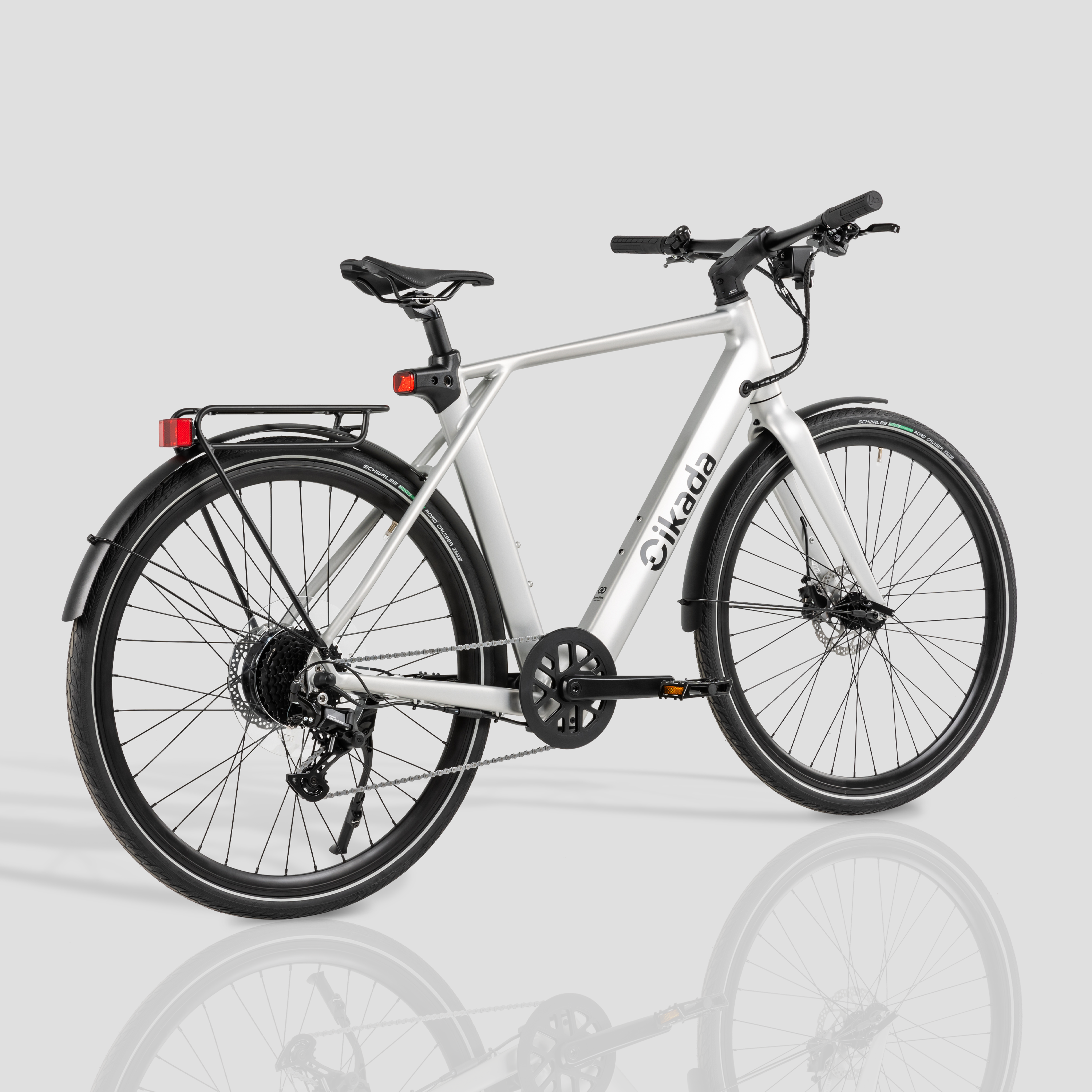

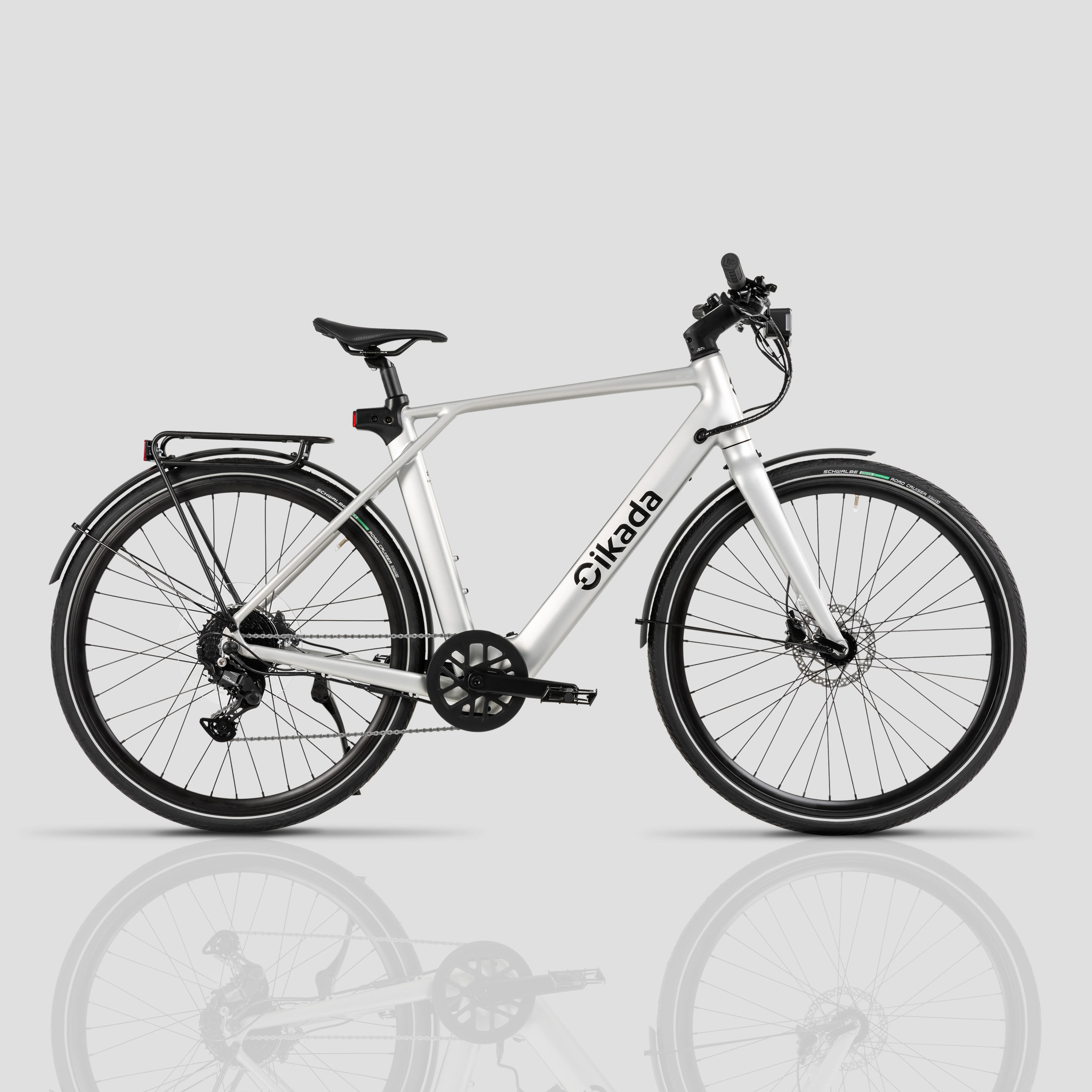

Urban Adventure
Designed for the pure joy of urban-optimised riding and off-road cycling, the Urban A is ideal for riders who seek a more adventurous and adaptable e-Bike. Combining the power of electric assistance with all-road versatility, the Urban Adventure is ready to cope with a variety of terrains, from city streets to gravel roads, forest trails and mountain paths.
Featuring a rugged build with a strong frame, sports type of saddle, wider gravel type of tyres, lower stem and a straight handlebar, it provides a sports riding geometry to handle tough conditions without compromising comfort. An advanced Shimano 9-speed derailleur ensures the Urban A has a wide range of gears to tackle various terrains and riding conditions, whilst its dual-battery-ready system with an optional water bottle battery allows you to ride further without having to stop and recharge frequently.
To deliver optimised power for every riding style, it features a responsive 250W rear hub motor and a premium in-tube Samsung 353Wh battery offering up to 60km (37mi) assisted range and up to 90km (56mi) with the optional 250Wh battery.
With 40Nm of torque, the Urban A provides adventure seekers with plenty of power and support for nimble city navigation and enjoyable off-road cycling. To have a clear understanding of your e-Bike's performance, enhance the overall riding experience and let you stay in complete control of your ride, the Urban A boasts a stem-integrated FocusRide GoDash TFT display. Manage, customise and analyse your ride by connecting your Urban A with Cikada Connect app via Bluetooth and enjoy a smart, green e-biking experience.
Urban A Highlights
- Dual-battery-ready system for long riding distance
- Maximum Range: 60km (37mi) (90km (56mi) with an optional water bottle battery)
- Maximum Assisted Speed: 25kph (15.5mph)
- Sleek and agile frame design
- Premium Samsung 353Wh in-tube battery
- Integrated Shimano Cues technology for smooth shifting, durability and ultimate versatility for every ride
- Stem integrated TFT display with Bluetooth for seamless connection with Cikada app and smart e-Bike control system
- 3 pedal assist modes
- Ergonomically designed saddle, wider, gravel type Schwalbe Road Cruiser KGuard tyres, lower stem, and straight handlebar for a sports riding geometry
- Shimano 9-speed derailleur to tackle various surfaces and riding conditions
- 40 Nm of torque to effortlessly tackle hills
- Ideal for commuting and exploring urban landscapes with ease and elegance
- Adventure-ready e-Bike that handles a variety of terrains from city streets to rugged trails and countryside paths
Shipping and Returns
Share some content to your customers about your products.
Choose options
What makes the Urban Adventure e-Bike so special.
Highlighted features
Motor
DynaForce ACM4EB0129A0 250W rear hub motor; 40Nm
Tyres
Schwalbe Road Cruiser KGuard
Battery
Samsung 21700/36V/9.8Ah/353Wh
Maximum Range
60km (37mi) with main battery & up to 90km (56mi) with the optional water bottle battery
Torque Sensor
Integrated

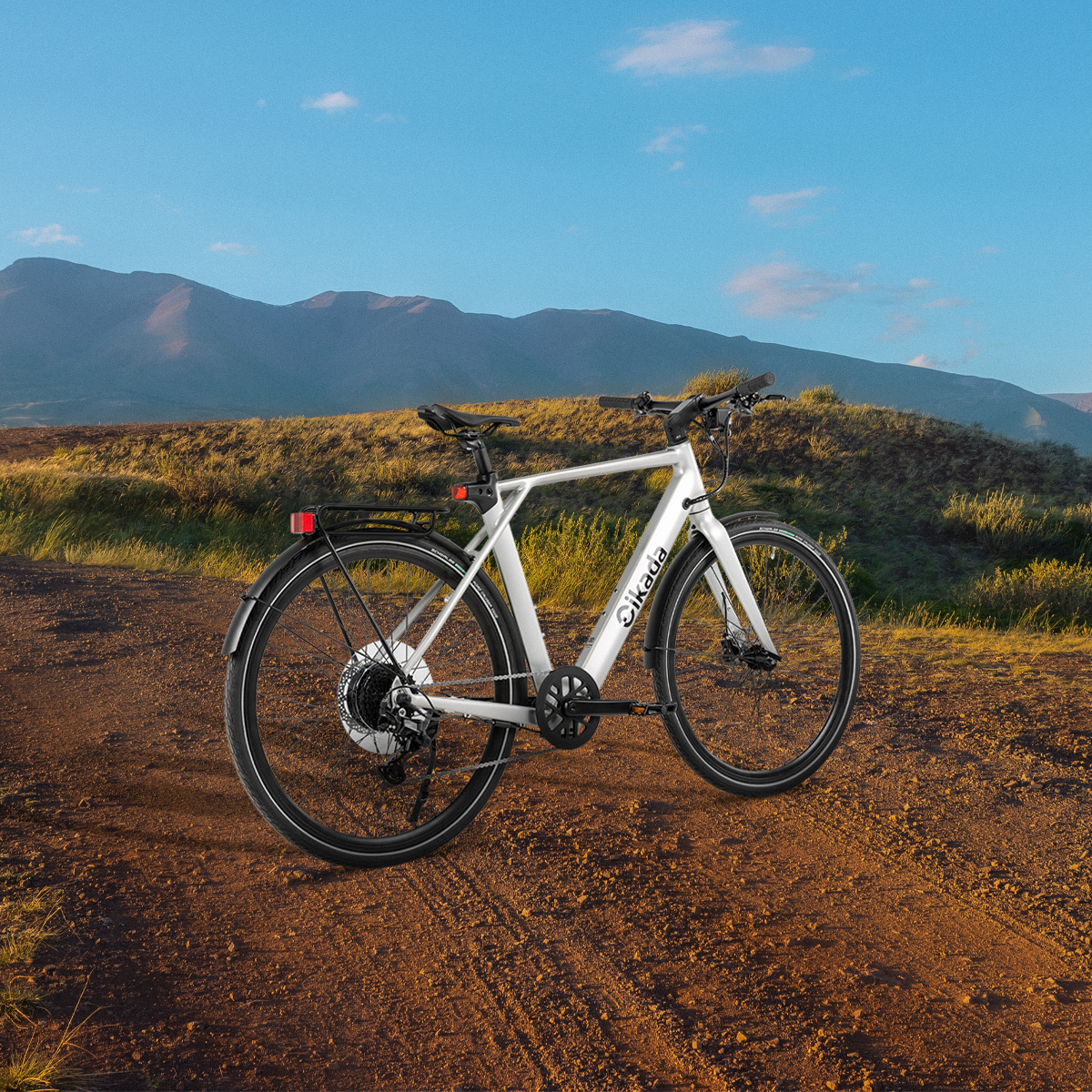

All-Terrain Versatility with Urban A
Varied Adventures In & Out Of Town
Enhanced Adventure Capabilities
Featuring a dual-battery-ready system, the Urban A is ideal for long commutes, touring and off-road adventures. With an included in-tube Samsung 353Wh battery and an optional 250Wh water bottle battery, you can significantly increase your riding distance to conquer hills, enjoy a smooth, efficient riding experience and explore further without power anxiety. The dual battery setup allows for extending the Urban A’s assisted range from 60km (37mi) up to 90km (56mi), giving you maximum flexibility to customise your ride based on your daily needs.

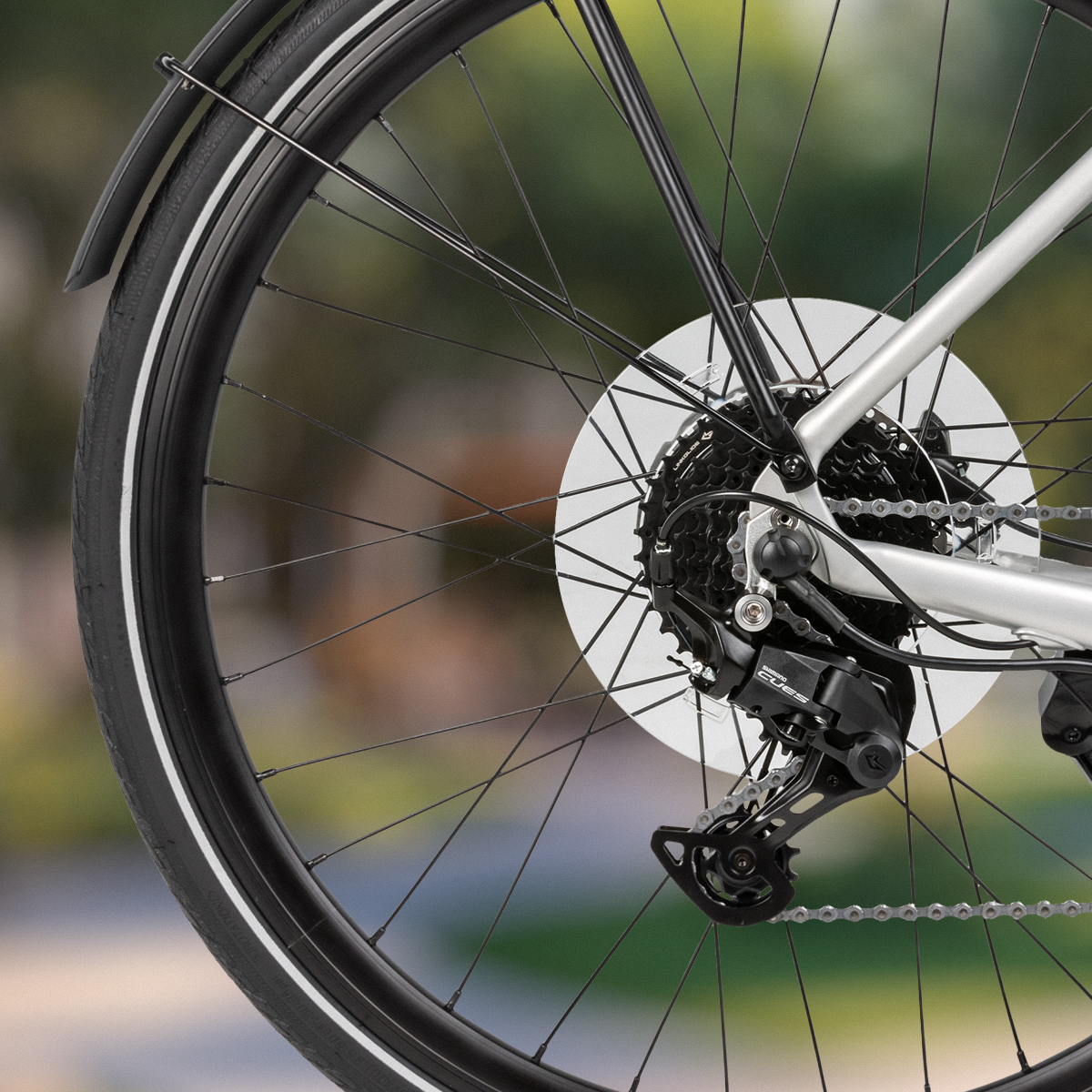

Multi-Speed System
Enjoy effortless climbing, smooth acceleration and adaptability to different terrains thanks to the Shimano 9-speed derailleur allowing you to fine-tune your cadence, easily tackle steep hills and enhance your riding comfort and control. The integrated Shimano Cues technology offers smooth shifting, durability and ultimate versatility for every ride. Whether you’re riding on flat city streets, exploring gravel paths or conquering steep inclines, the multi-speed system lets you adjust effortlessly to changing conditions.
Technology
For a seamless, well-rounded and adventurous e-biking experience, the Urban A brings together cutting-edge technologies that work in perfect harmony. Powered by DynaForce, an advanced multi-sensor technology and a highly responsive 250W rear hub motor, the Urban Adventure delivers a natural riding feel and optimised power output, ensuring smooth performance with 40Nm of torque across all riding styles. The stem-integrated FocusRide display keeps vital stats easily accessible and ensures a perfect viewing angle, so you can stay focused on the road ahead. Incorporating PowerFlow battery technology and a dual-battery-ready system, the Urban A provides consistent power across all terrains, extending your journey with ease and reliability.
Stem-Integrated Smart Display
At the heart of a sleek, minimalist FocusRide console sits a clear 2” TFT display that gives you an optimal viewing angle for a distraction-free ride and puts all essential performance metrics right at your fingertips. Featuring Bluetooth connectivity, it serves as a central hub for real-time data and complete ride control, enhancing your overall e-biking experience. Navigate city streets effortlessly with its intuitive interface and monitor speed, battery life, and assist level at a quick glance without shifting focus. Seamlessly sync the display with the Cikada Connect app to customise and analyse your ride, track vital stats and record unforgettable trips, all while conveniently managing every function of your e-bike.
Urban Adventure e-Bike Geometry
Urban A has been designed with ergonomics and sleek aesthetics in mind to seamlessly blend into your way of living.
| Part | Medium | Large | Extra Large |
|---|---|---|---|
| A - Seat Height | Min: 610mm (24″), Max: 750mm (29.5″) | Min: 655mm (25.7″), Max: 805mm (31.6″) | Min: 685mm (27″), Max: 880mm (34.6″) |
| B - Head Tube Length | 175mm (6.8″) | 175mm (6.8″) | 175mm (6.8″) |
| C - Head Tube Angle | 71° | 71° | 71° |
| D - Seat Tube Length | 500mm (19.7″) | 540mm (21.2″) | 580mm (22.8″) |
| E - Top Tube Length | 579.4mm (22.8″) | 605mm (23.8″) | 623.5mm (24.5″) |
| F - Seat Tube Angle | 73.5° | 73.5° | 73.5° |
| G - Chainstay Length | 458.5mm (18″) | 458.5mm (18″) | 458.5mm (18″) |
| H - Wheel Base | 1095mm (43″) | 1121mm (44″) | 1140mm (45″) |
| I - Stack | 606.3mm (23.9″) | 606.3mm (23.9″) | 606.3mm (23.9″) |
| J - Reach | 399.8mm (15.7″) | 425.6mm (16.7″) | 442.9mm (17.4″) |
| K - Crank Length | 170mm (6.7″) | 170mm (6.7″) | 170mm (6.7″) |
| L - Wheel Size | 700C | 700C | 700C |
Detailed Specification
Full specification and detailed explanation of the Urban Adventure e-Bike construction and features.
Power System
Motor: DynaForce ACM4EB0129A0 250W rear hub motor; 40Nm (OLD: 137.5mm/cassette/disc brake)
Battery: Samsung 21700/36V/9.8Ah/353Wh, internal down tube battery; 4-6h charging time
Additional Battery: Samsung 18650/36V/250Wh water bottle battery (optional extra)
Riding Range: up to 60km (37mi) with main battery and up to 90km (56mi) with the optional water bottle battery
Display: Stem integrated FocusRide GoDash TFT display with Bluetooth (2”/36V); 3 modes, km/mi switch, walk assistance, battery indicator, lighting control, speed display, time display, motor output power indicator, energy consumption indicator, support levels, information view, error message view
Torque Sensor: Yes
Frameset
Frame: 6061 aluminium (700C x M500mm (19.7”)/ L 540mm (21.2”)/ XL 580mm (22.8”))
Fork: Aluminium 6061 T6, rigid fork, Old - 10mm x 100mm (0.4” x 3.9”)
Wheels
Tyres: Schwalbe Road Cruiser KGuard, 42-622 green 50 EPI
Rims: 700C alloy double wall rim, ETRTO - 622 x 18.8, 36H x 13G
Front Hub: 36H x 13G, O.L.D – 100mm (3.9”), CR-MO hollow axle, W/QR
Rear Hub: Hub motor
Spokes: 13G stainless black spokes, with 14mm (0.5") brass nipples
Interactivity
Compatible Applications: Cikada Connect app
Drive Train
Crankset: Prowheel steel chainring, crank length – 170mm (6.7”) JIS

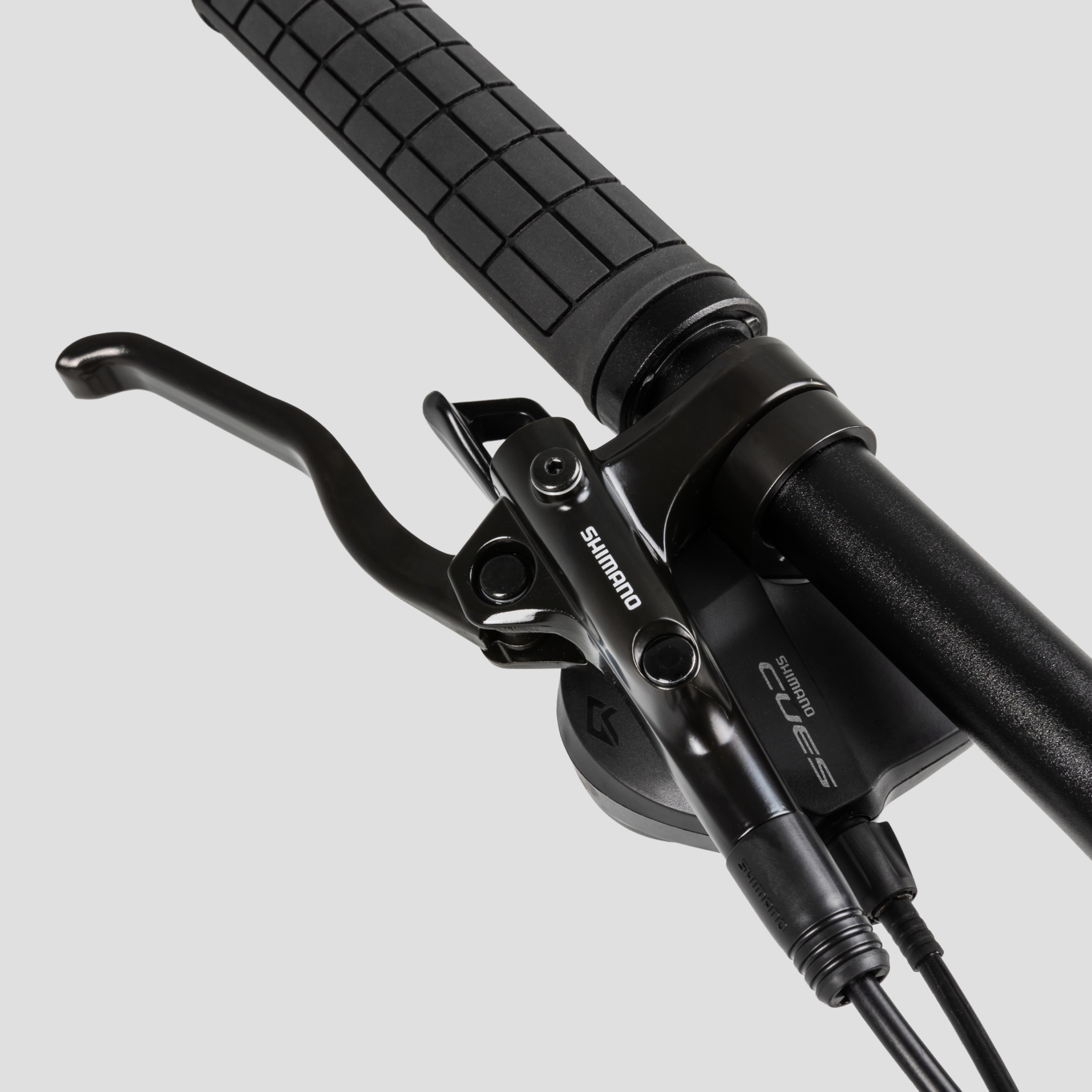

Shift Lever: Shimano Cues U4000

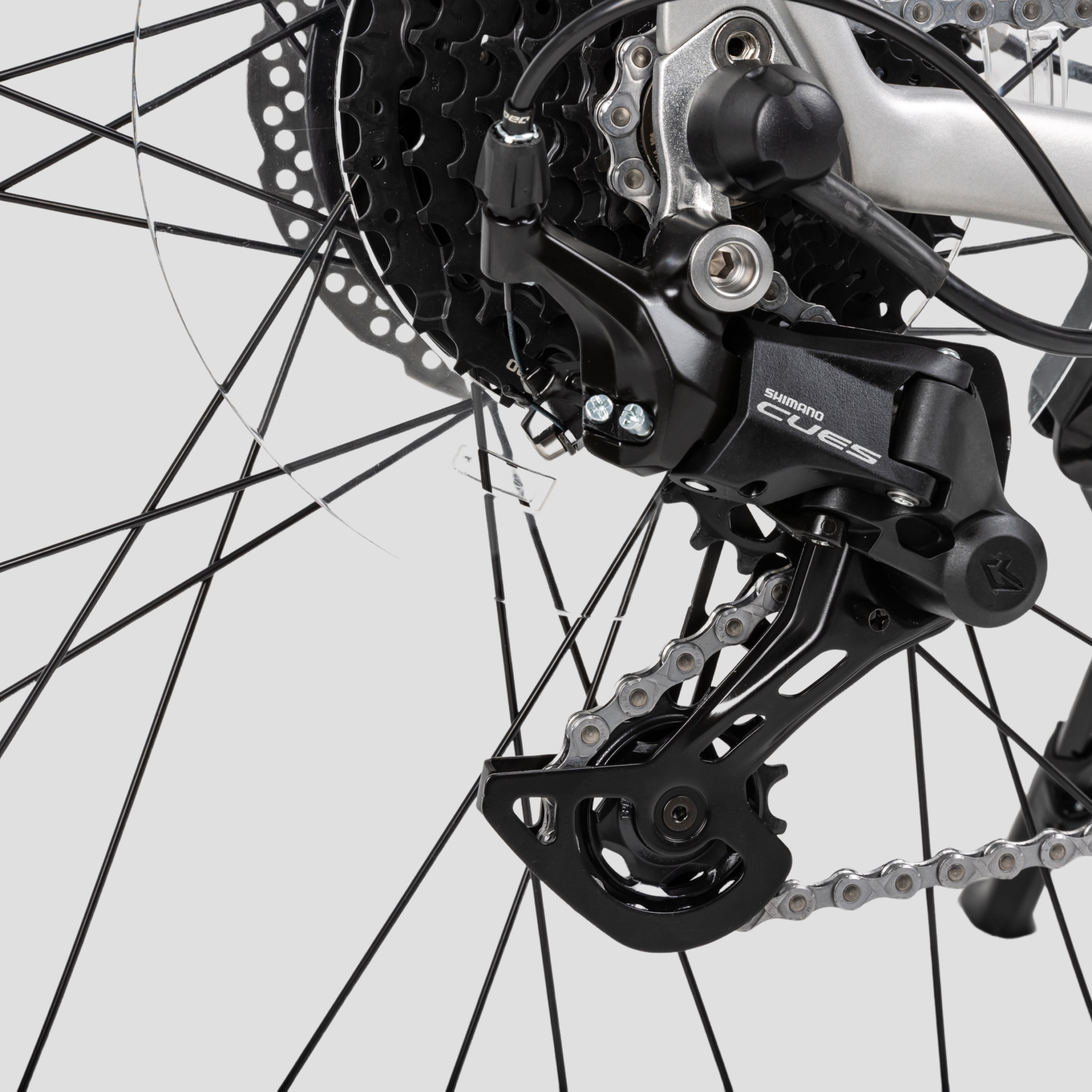

Rear Derailleur: Shimano Cues RD-U4000
Cassette: 9 spd, 11-36T
Chain: KMC-Eglide-EPT

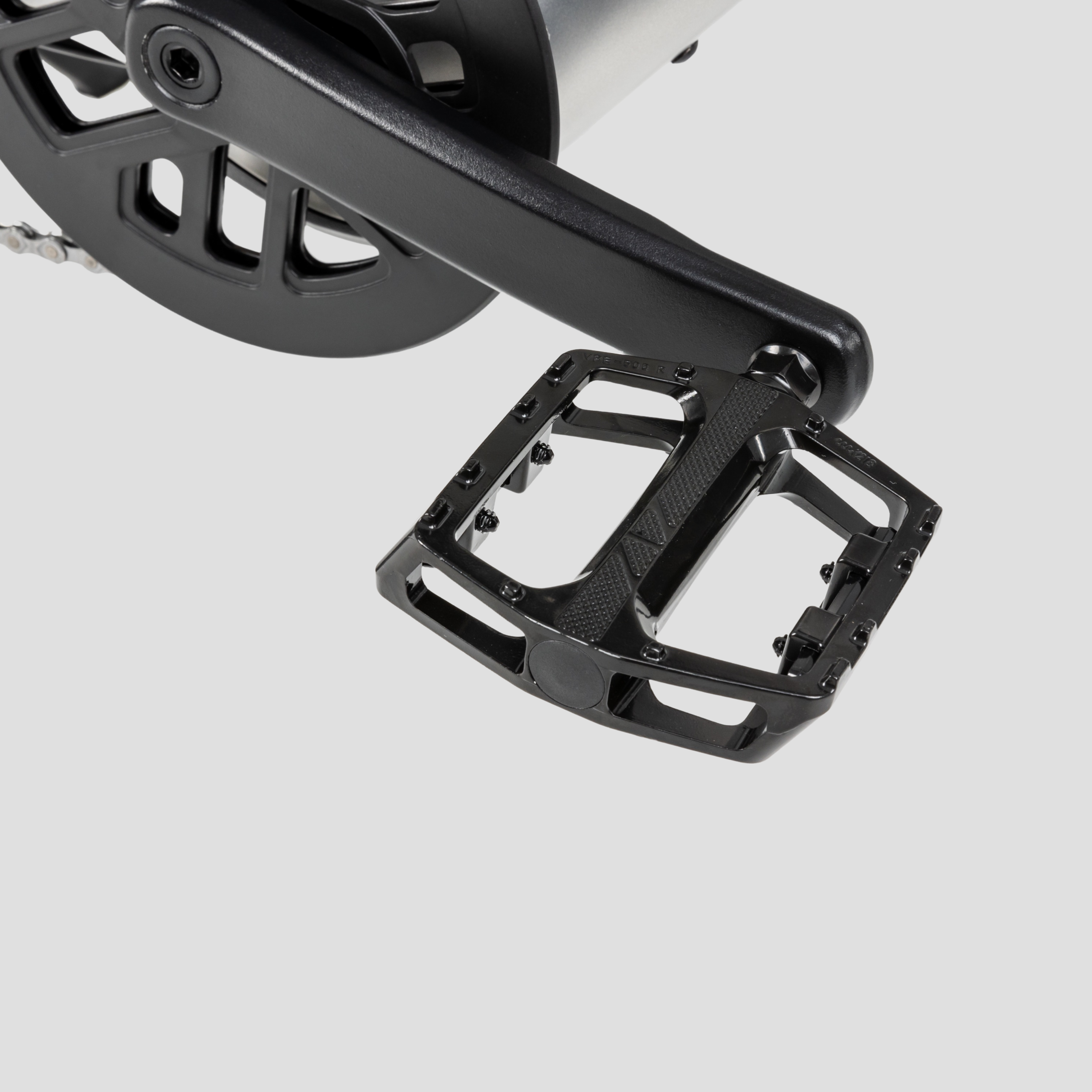

Pedals: Alloy body steel boron axle 9/16”, 7mm boron steel, Size - 112mm x 100.5mm (4.4” x 3.5”), with reflector fine line included, TW K-Mark
Components

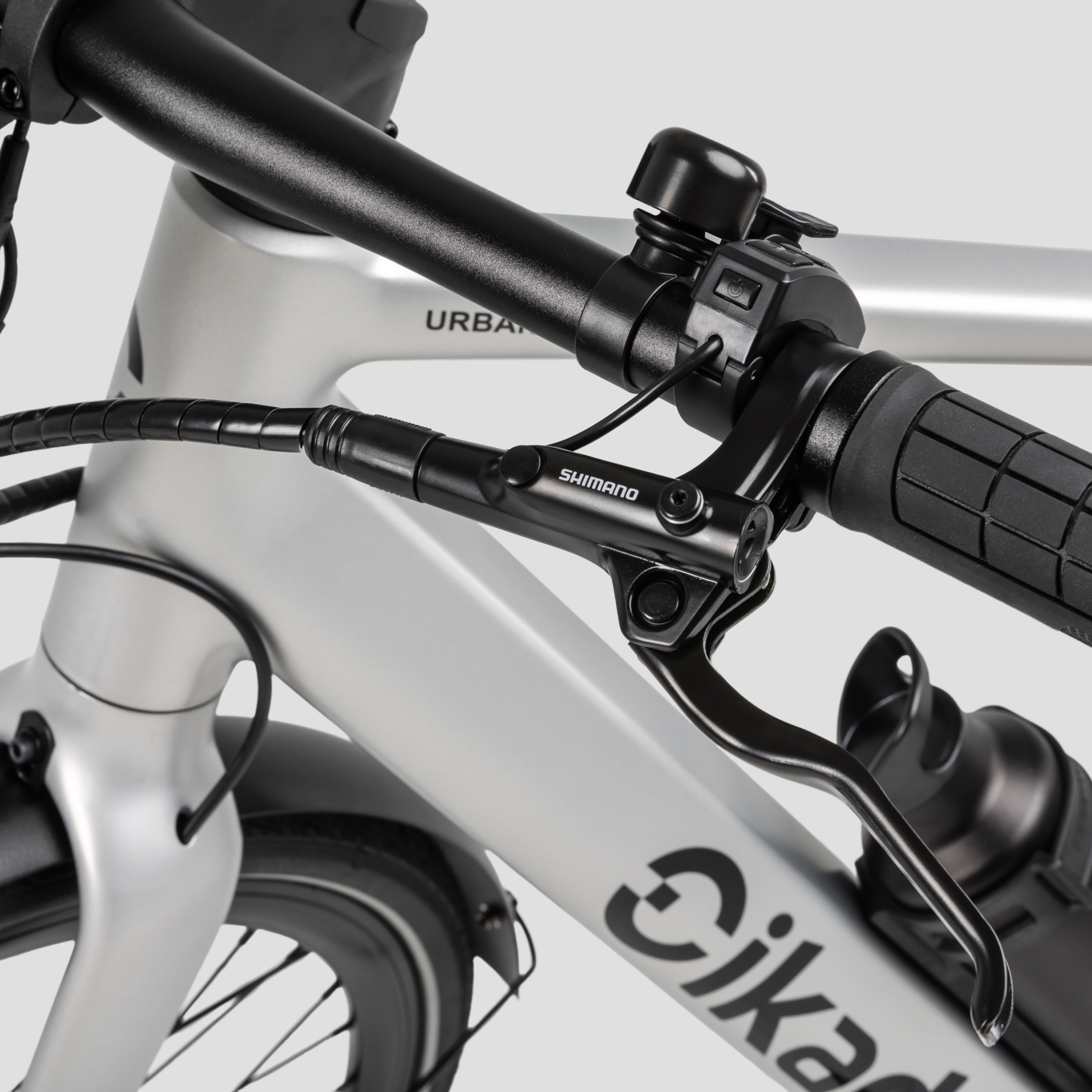

Brakes: Shimano hydraulic disc brakes, 160mm (6.3”) rotor, MT120
Handlebar: Straight handlebar; alloy 6061 PG, Width - 680mm (26.7”) M/ 700mm (27.5”) L&XL, Barbore - 31.8mm (1.2"), Rise - 0°, Backsweep - 9°, sand blasted anodised black
Stem: Alloy forged stem, Barbore - Ø31.8mm (1.2"), Extension - 100mm (3.9”), Rise - 15°, Height: 40mm (1.6”), sand blast anodised black, with front light bracket
Headset: Box headset (IS52/28.6, L IS52/30), integrated cable routing headset for zoom stem

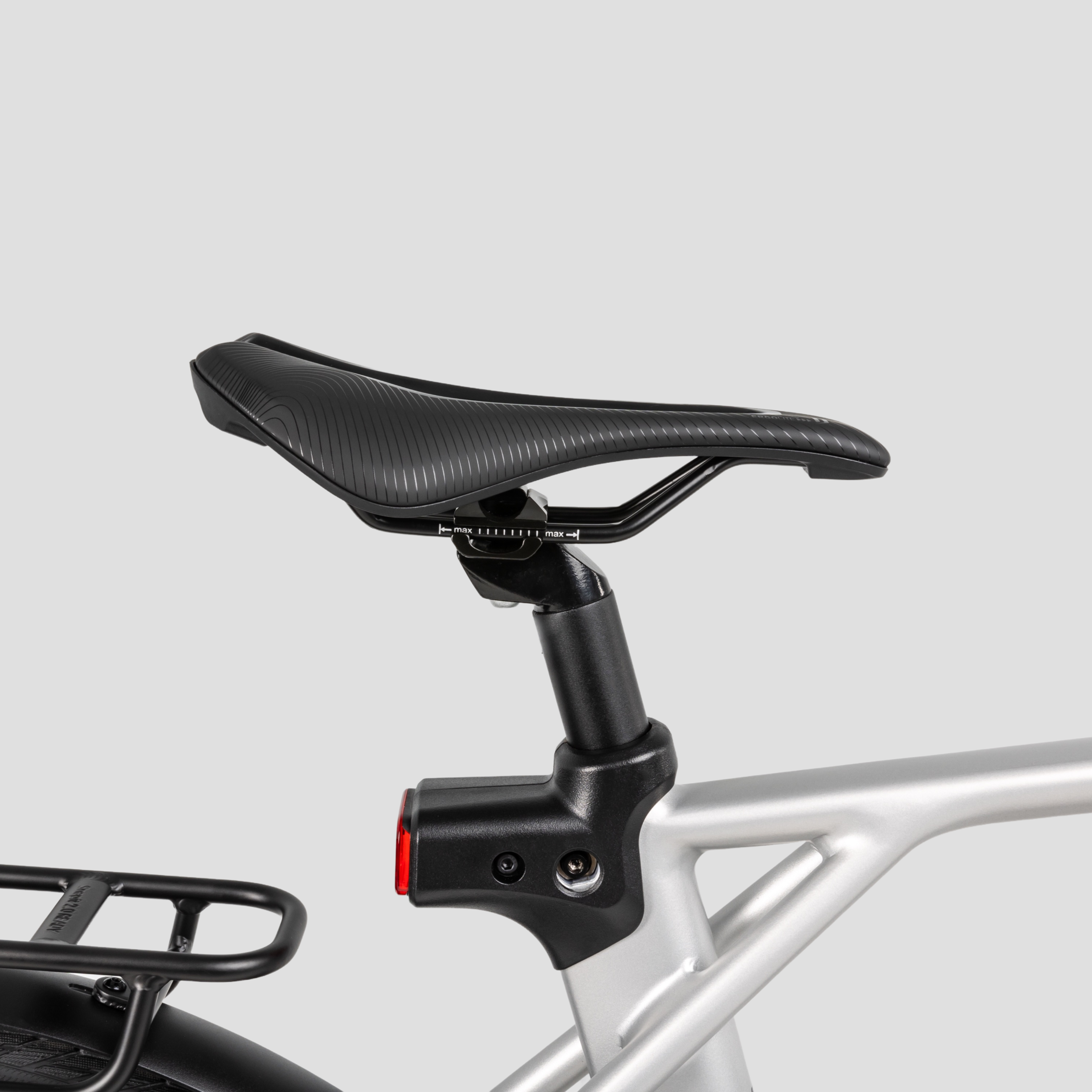

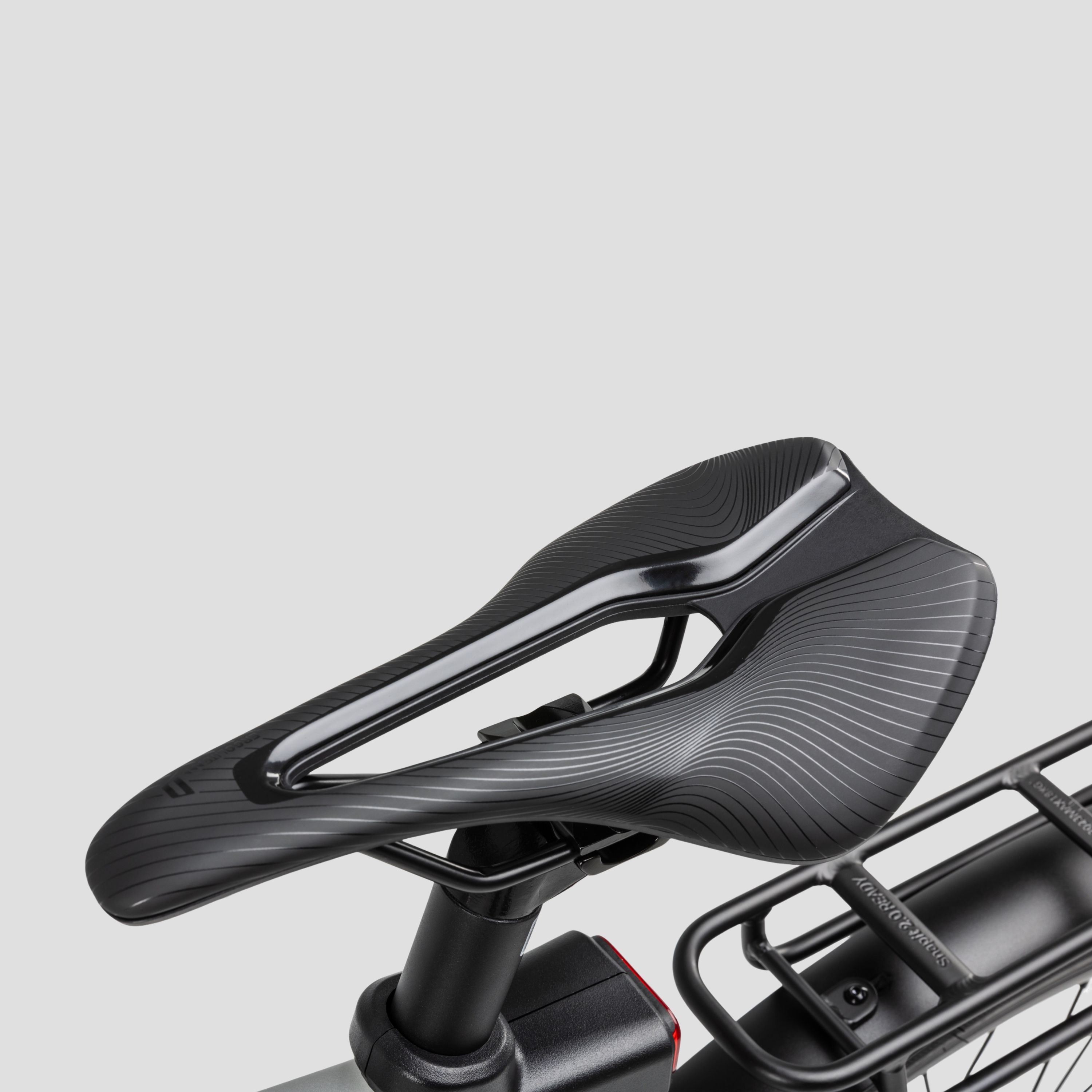

Saddle: Ergonomic sport saddle; Size - 250mm x 140mm (9.8” x 5.5”), Material - Support PU foam, Base: PP, Rail: Steel ED black with scale, seat weight - 284g (10oz)
Seatpost: Die-casting alloy, Diameter - Ø 31.6, Offset 16mm (0.6”), Length - 300mm (11.8”) M&L/ 350mm (13.7”) XL
Grips: Material – PP/TPR, spec ID Ø22.2mm (0.9”) x OD 31mm (1.2”) x 136mm (5.3”), with black anodised clamp, close end
Bottom Bracket: Torque sensor single, BB 73/ JIS
Additional Information
Product Weight: 21kg (46lbs)
Maximum User Weight: 120kg (264.5lbs)
Size Options
M: 20” (50cm) for riders between 5’3” - 5’9” (160cm - 175cm) in height
L: 21” (54cm) for riders between 5’7” - 6’1” (170cm - 185cm) in height
XL: 23" (58cm) for riders between 5’11” - 6’5” (180cm - 195cm) in height
Accessories

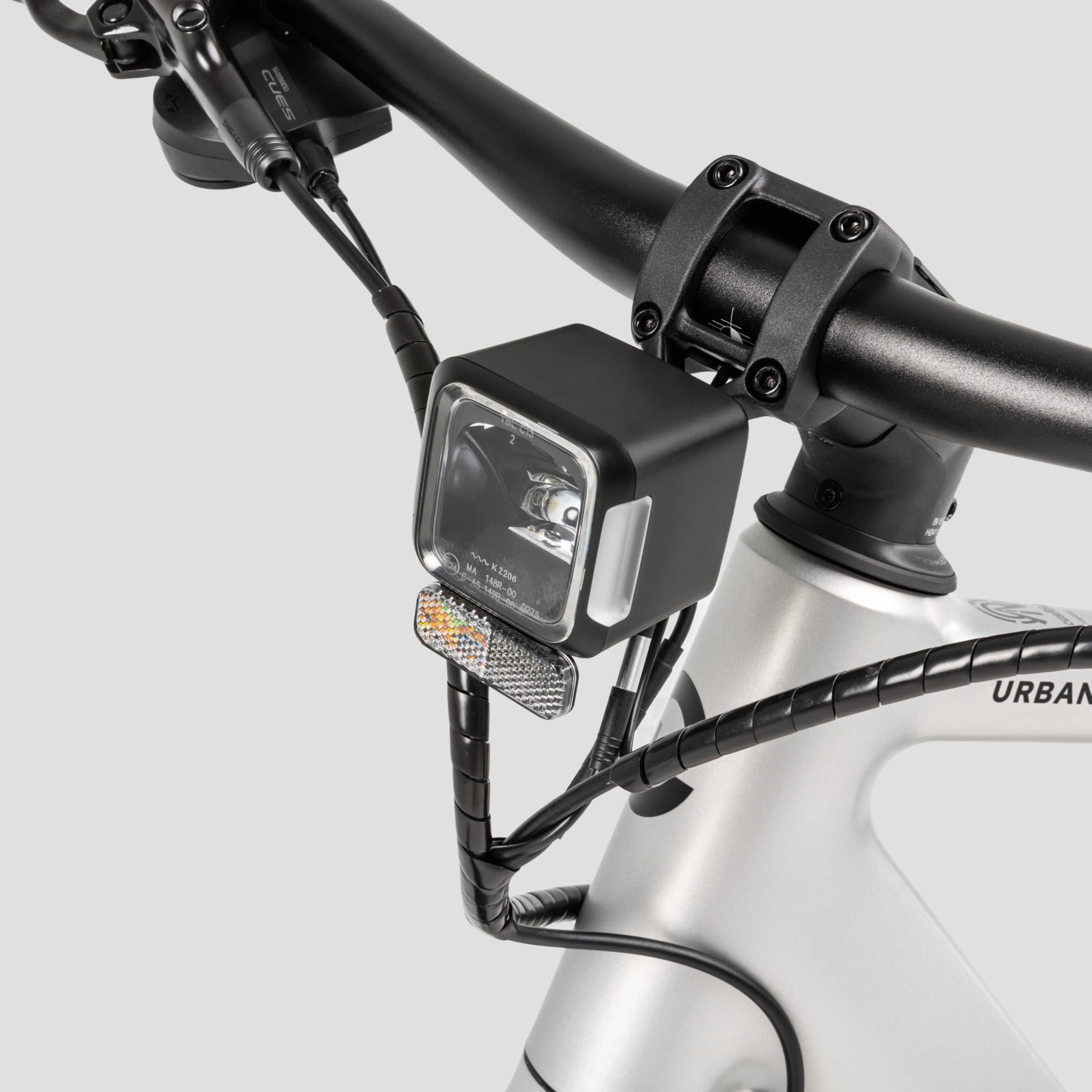

Head light

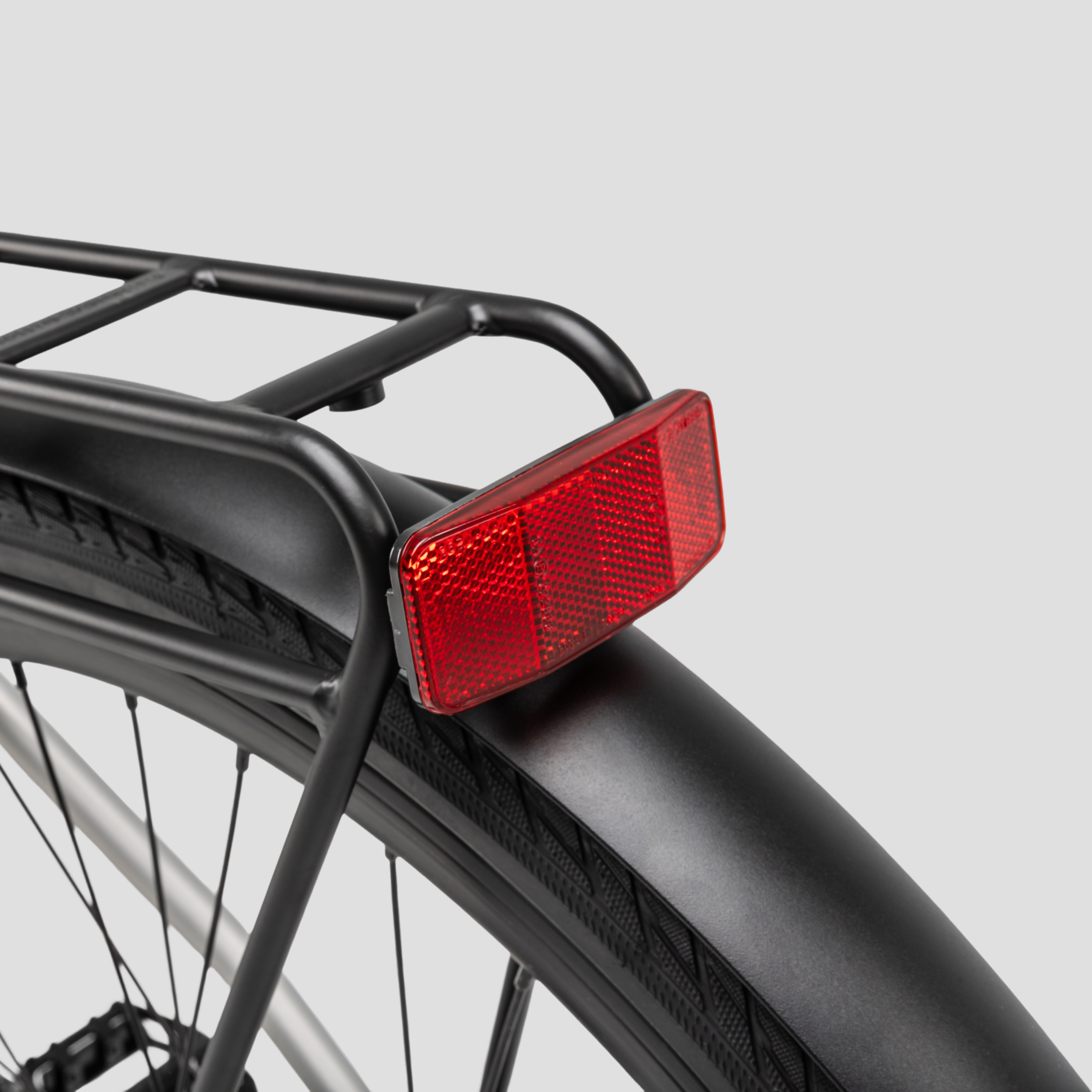

Tail light
Kickstand

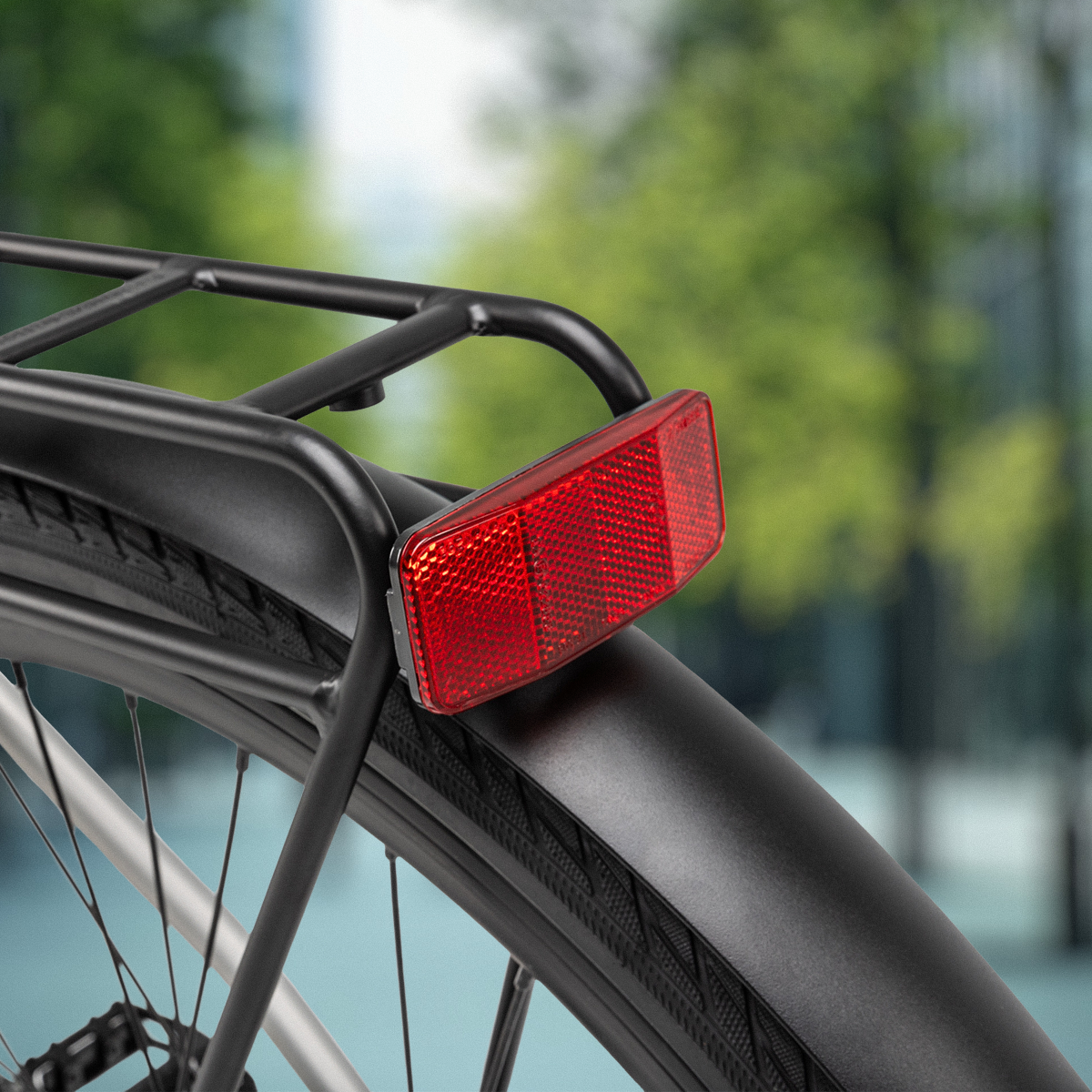

Fender
Bell
Warranty
Suspension Fork: 2 years
Electronics (Excluding Battery): 2 years
Battery: Up to 600 charges or 2 years, whichever comes first
Accessories: 1 year
All Other Non-Wearing Components: 2 years
