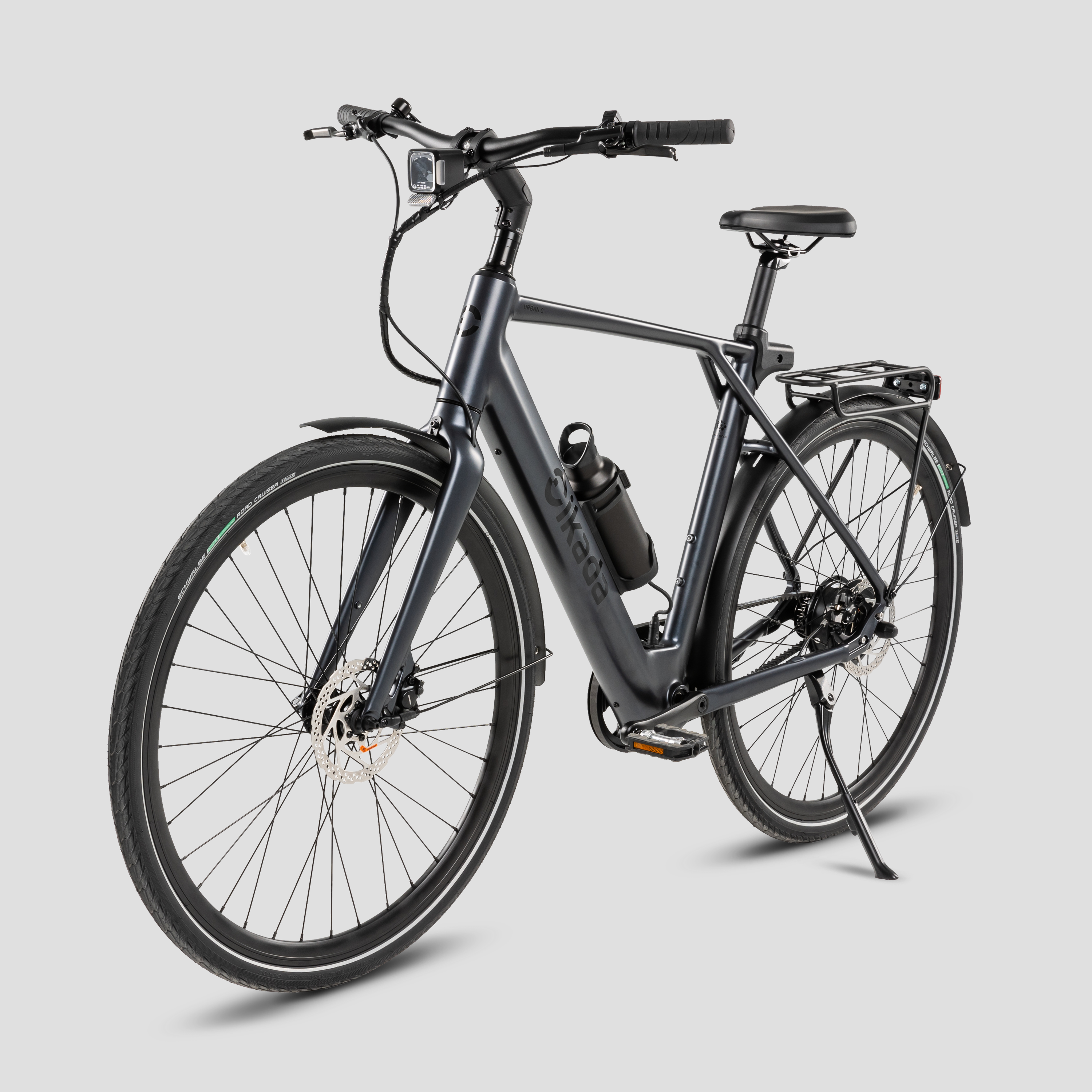

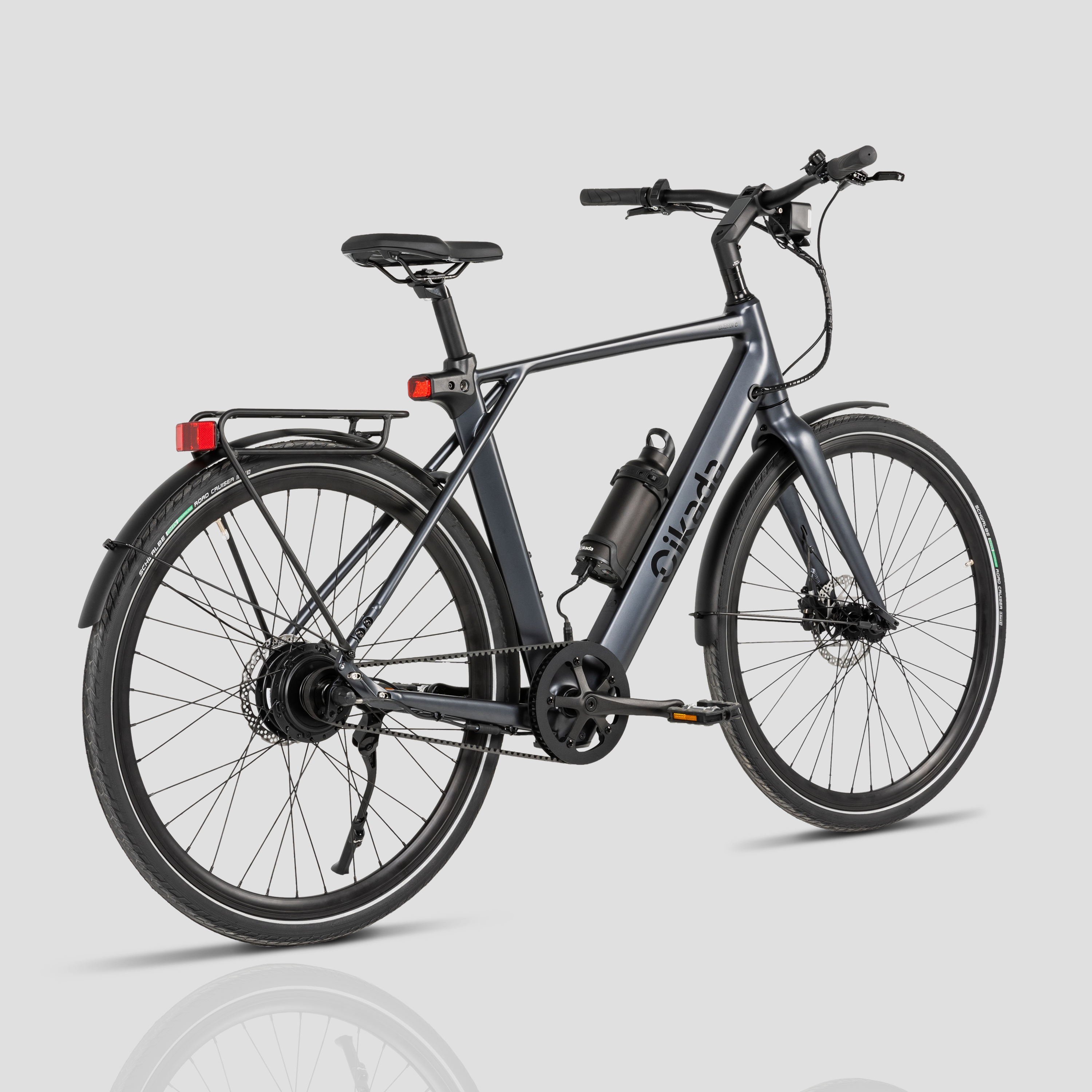

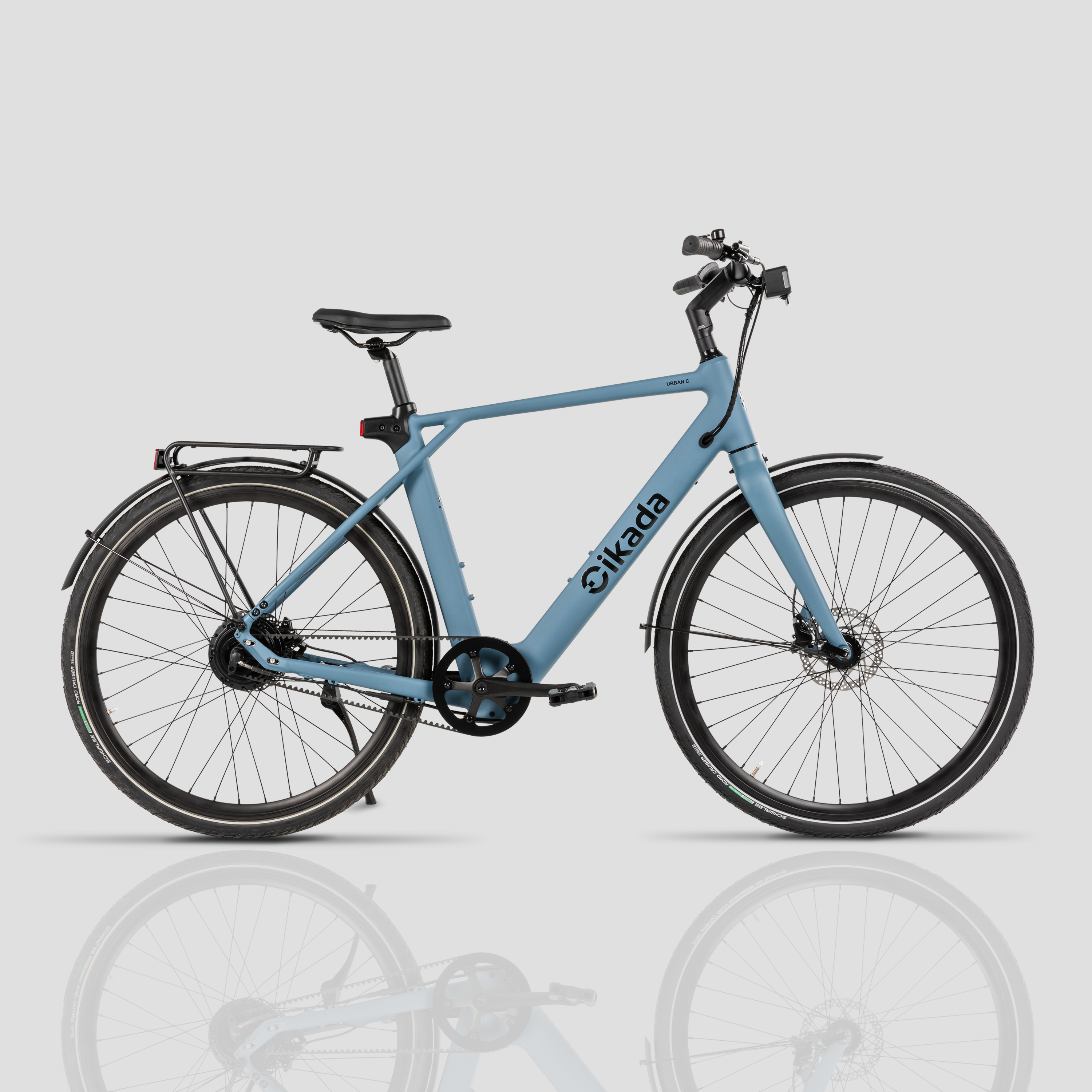

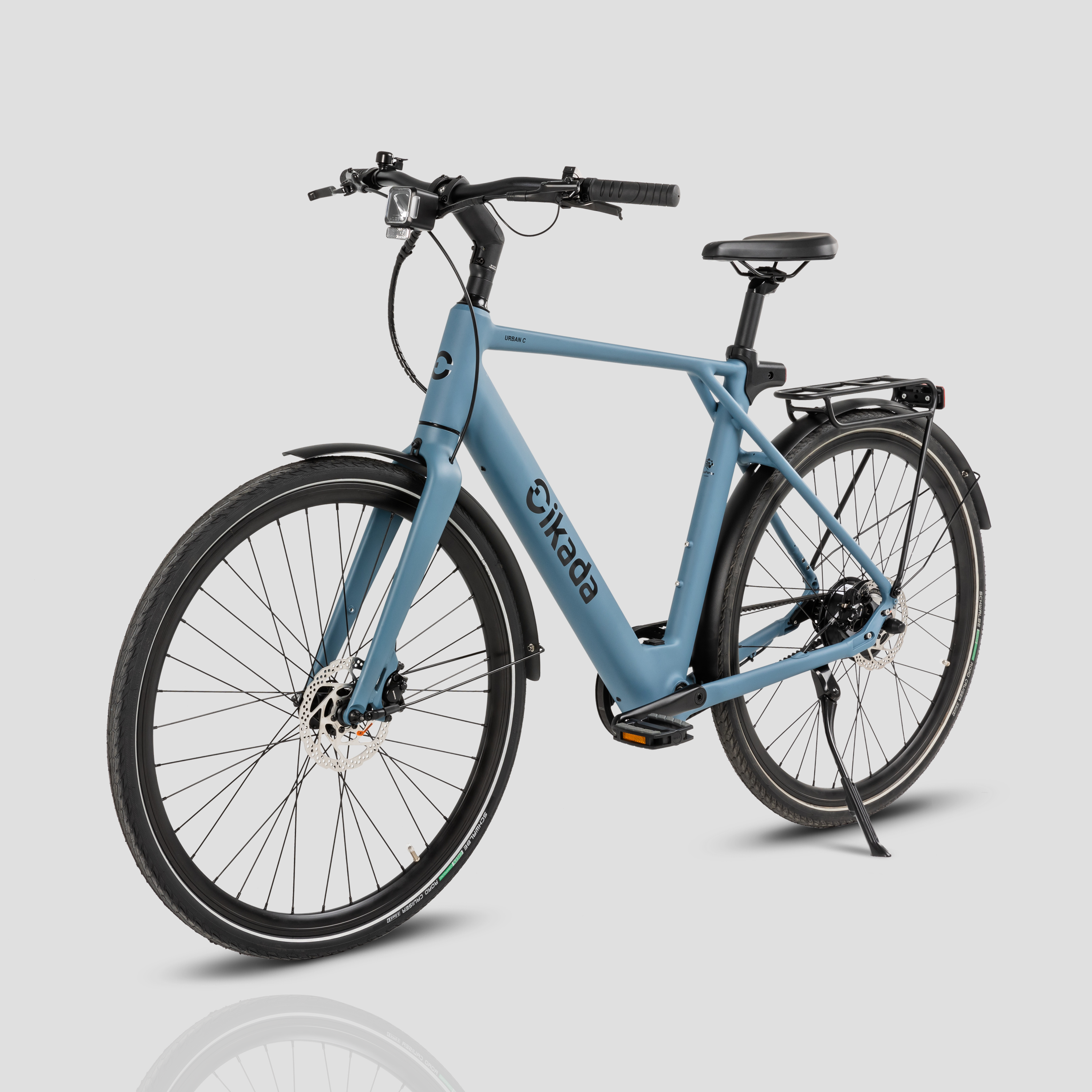

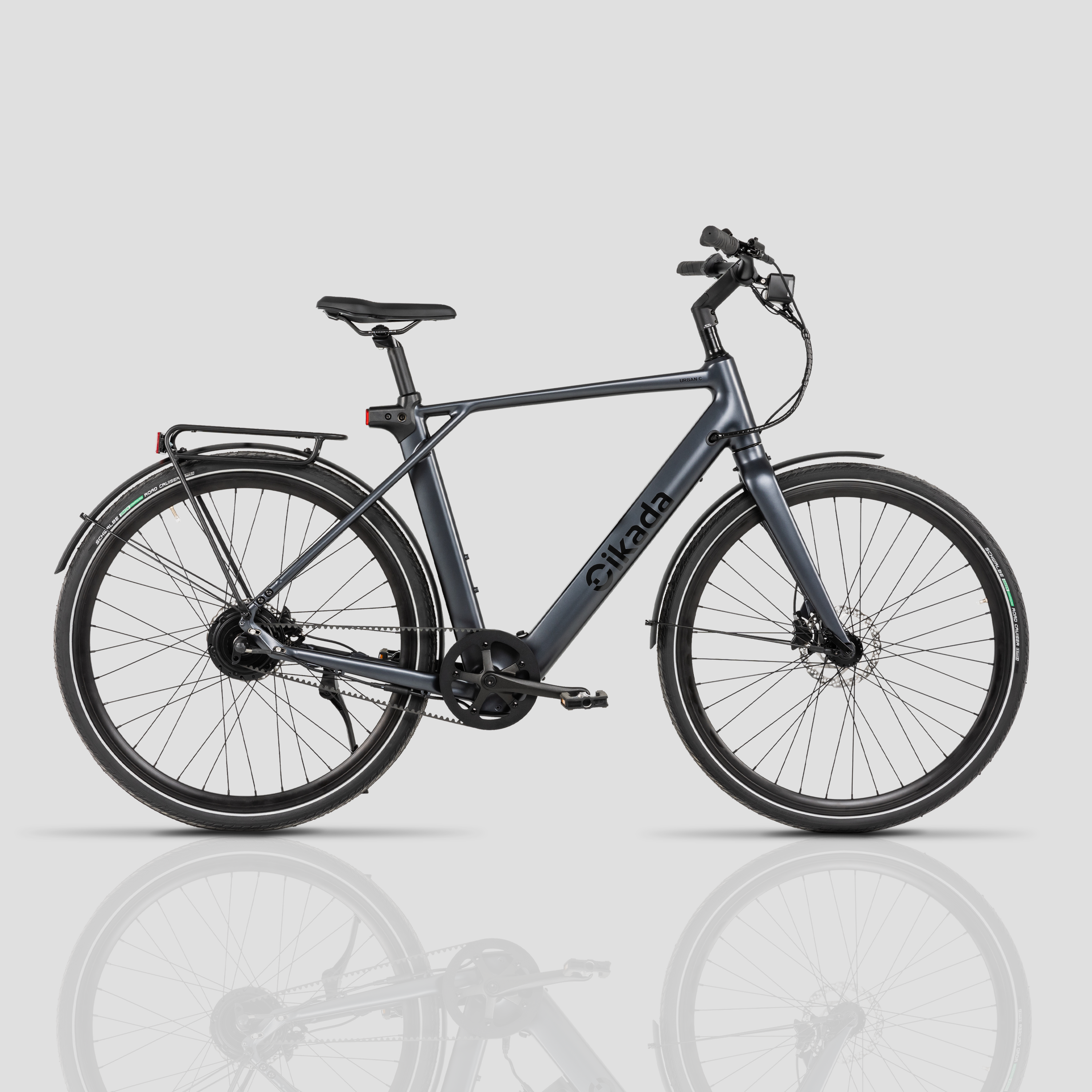

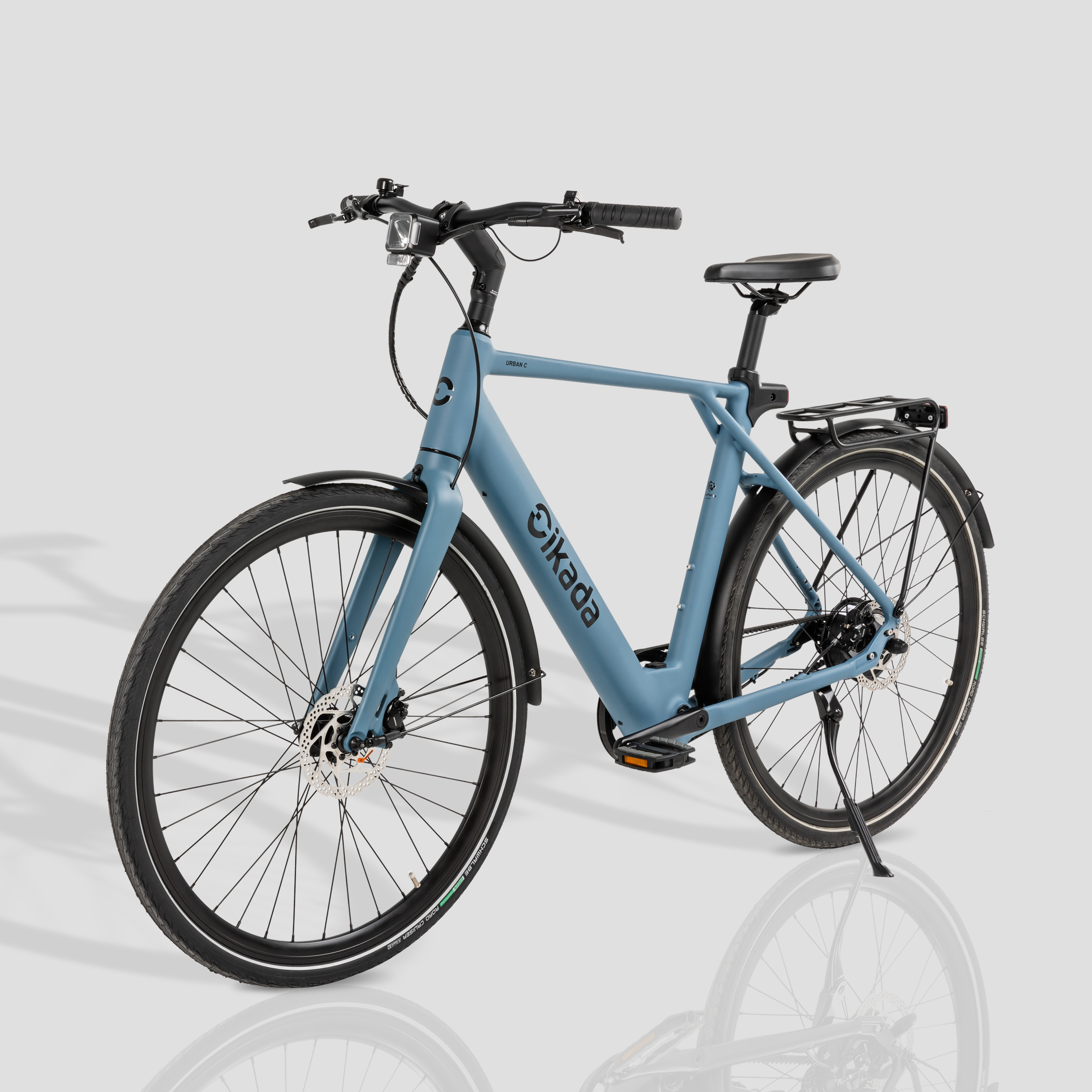

Urban Cruise
Comfortable and easy to ride, the Urban C is a performance commuter perfect for everyday use and leisurely rides around town. Offering a relaxed and effortless cruising experience in urban and suburban settings, the Urban C is the epitome of good time and convenience. Made to provide you with the smoothest way to get around on an e-Bike, the Urban Cruise combines simplicity and ease of use with its single-speed configuration and absence of a derailleur. The lack of gears means less maintenance and makes the Urban C ideal for riders who want a hassle-free and reliable mode of green transportation.
Equipped with advanced smart features, the Urban C records your route, ride data, tracks emissions and enhances your overall riding experience with FocusRide stem-integrated TFT display that seamlessly interacts with Cikada Connect app via Bluetooth. Choose from 3 available pedal assist modes and let the Urban C power your outdoor adventures with its responsive 250W rear hub motor delivering 40Nm of torque to tackle steep inclines with ease.
Featuring an in-tube Samsung 353Wh battery with premium cells, it ensures maximum efficiency, a smooth ride and consistent power delivery. A great partner for long-range commuting, the Urban C has a dual-battery ready system that allows for extending its range from 60km (37mi) to up to 90km (56mi) with an optional 250Wh water bottle battery.
With DynaForce multi-sensor technology, the Urban C provides a natural riding feel, whilst Shimano hydraulic disc brakes give you added safety and complete ride control. Designed with comfort, reliability and responsive urban riding in mind, the Urban C offers quick acceleration, as well as smooth and easy traffic navigation. Its straightforward design allows you to focus on enjoying your ride without the need for gear shifting or complex adjustments.
Urban C Highlights
- Dual-battery-ready system for long riding distance
- Maximum Range: 60km (37mi) (90km (56mi) with an optional water bottle battery)
- Maximum Assisted Speed: 25kph (15.5mph)
- Relaxed and effortless cruising experience
- Premium Samsung 353Wh in-tube battery
- Great combination of simplicity, comfort and ease of use
- Single-speed configuration and lack of gears for less maintenance and no complex adjustments
- Stem integrated TFT display with Bluetooth for seamless connection with Cikada app and smart e-Bike control system
- 40 Nm of torque to conquer hills with power and ease
- Sleek and agile fixie design
- Integrates efficiency, style, environmental consciousness and smart technology into the visionary rider’s daily commute
- Perfect for urban commuters seeking hassle-free and reliable e-Bike for everyday use
Shipping and Returns
Share some content to your customers about your products.
Choose options
What makes the Urban Cruise e-Bike so special.
Highlighted features
Motor

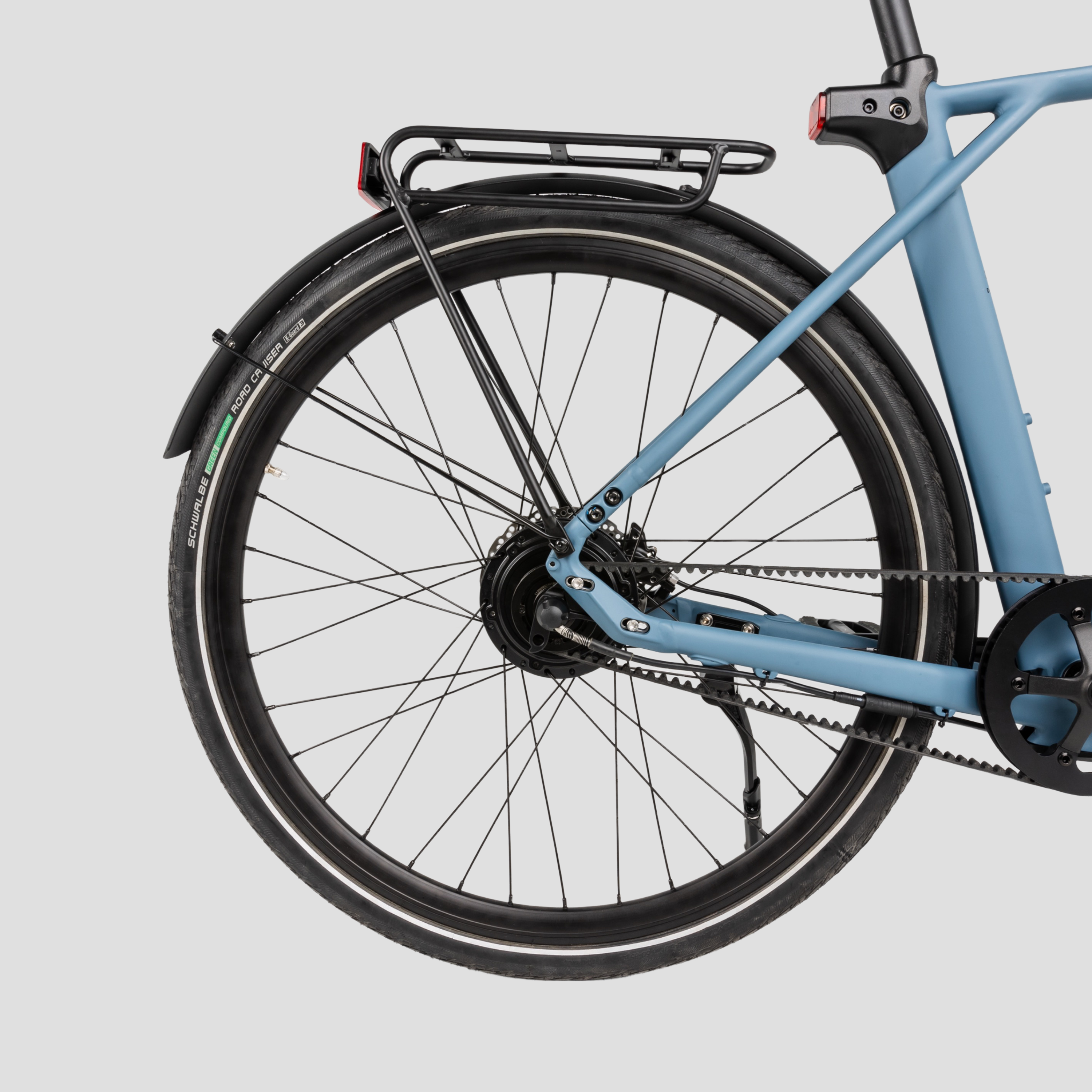

DynaForce ACM4EB0129A0 250W rear hub motor; 40Nm
Tyres
Schwalbe Road Cruiser KGuard
Battery
Samsung 21700/36V/9.8Ah/353Wh
Maximum Range
60km (37mi) with main battery & up to 90km (56mi) with the optional water bottle battery
Torque Sensor
Integrated
Responsive Riding with Urban C
Relaxed, Effortless Urban Cruising Experience

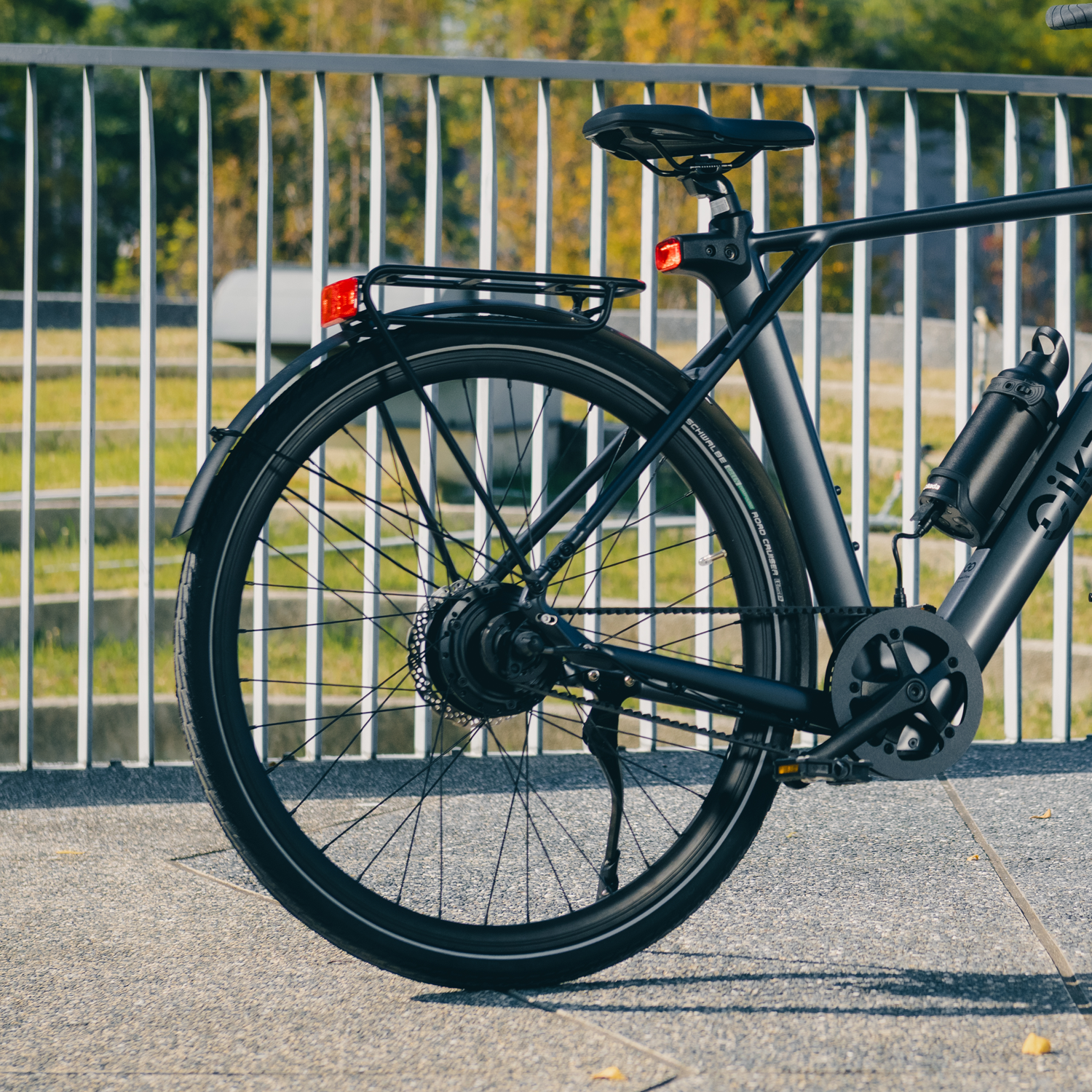

Extended Range

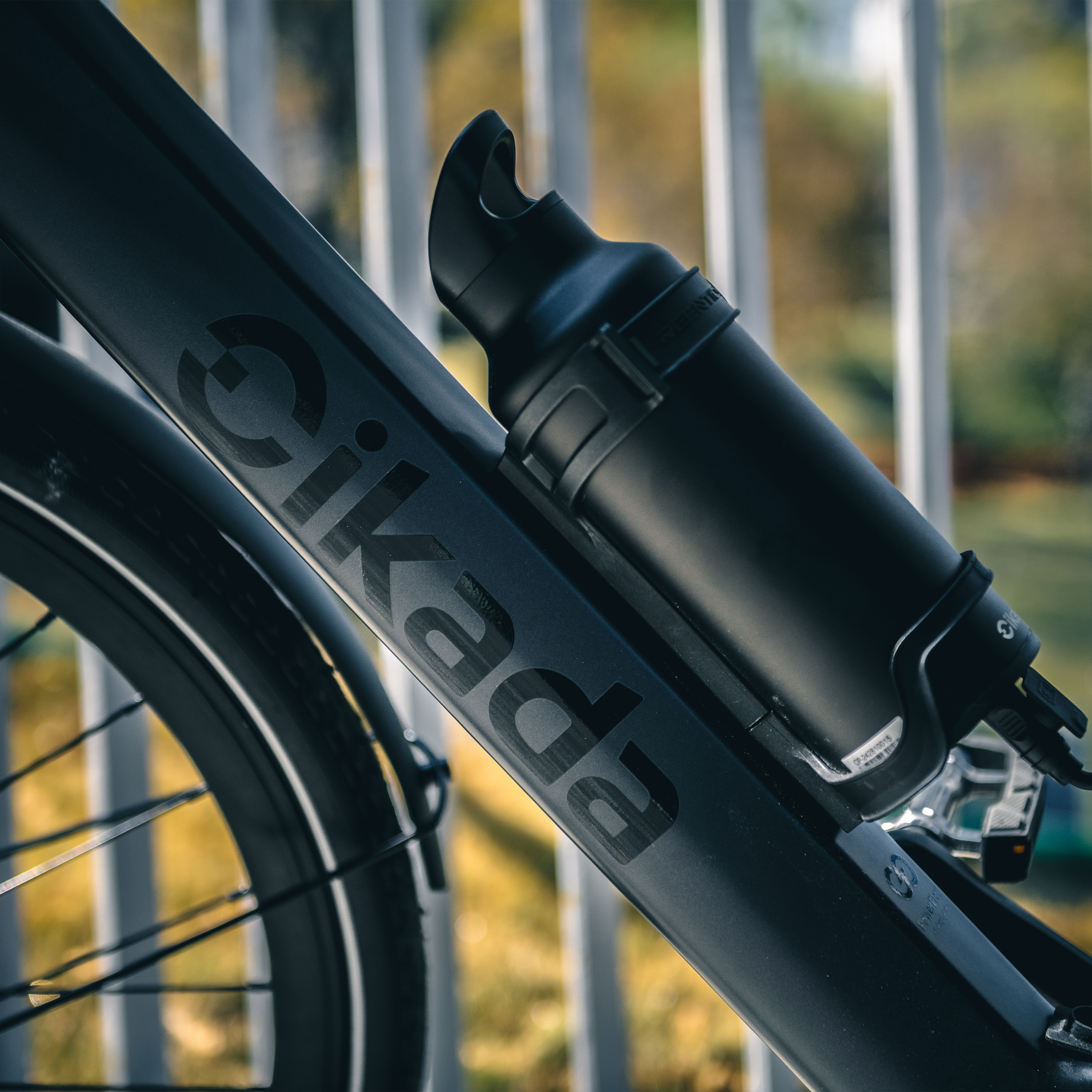

A perfect partner for long-range commuting, the Urban C offers a dual-battery-ready system that allows for extending its range by up to 40% with a minimal added weight. Upgrade your daily commutes and leisurely rides and run errands without the constant worry of running out of power. A game-changer for those who want to ride longer, the Urban C enables you to increase the assisted range from 60km (37mi) up to 90km (56mi) and quickly switch between the included in-tube Samsung 353Wh battery and an optional 250Wh water bottle battery for flexibility, convenience and total peace of mind.
City-Focused Simplicity
With its single-speed configuration, no derailleur and no gears to shift, the Urban C lets you hop on and ride smoothly and quietly. Ideal for urban riding and simplicity-focused cyclists, the Urban C gives you a perfect blend of reliability, low maintenance and ease of use. The absence of multi-gear drivetrain reduces weight, making the Urban Cruise easier to handle and more agile in urban settings. Streamlined for city life, effortlessly simple and super-sleek with a stylish fixie design, the Urban C combines efficiency, modern, minimalist look and a hassle-free ride.
Technology
For your harmonious, smooth and integrated e-biking experience, the Urban C incorporates innovative technologies that synergistically work together, offering a range of powerful benefits. With DynaForce, the Urban C delivers a natural riding feel and optimised power for every riding style thanks to a multi-sensor technology and a responsive 250W rear hub motor providing 40Nm of torque. Stay focused on the road ahead while effortlessly accessing vital information with a stem-integrated FocusRide display and get a continuous boost on various terrain with premium PowerFlow battery technology and a dual-battery-ready system.

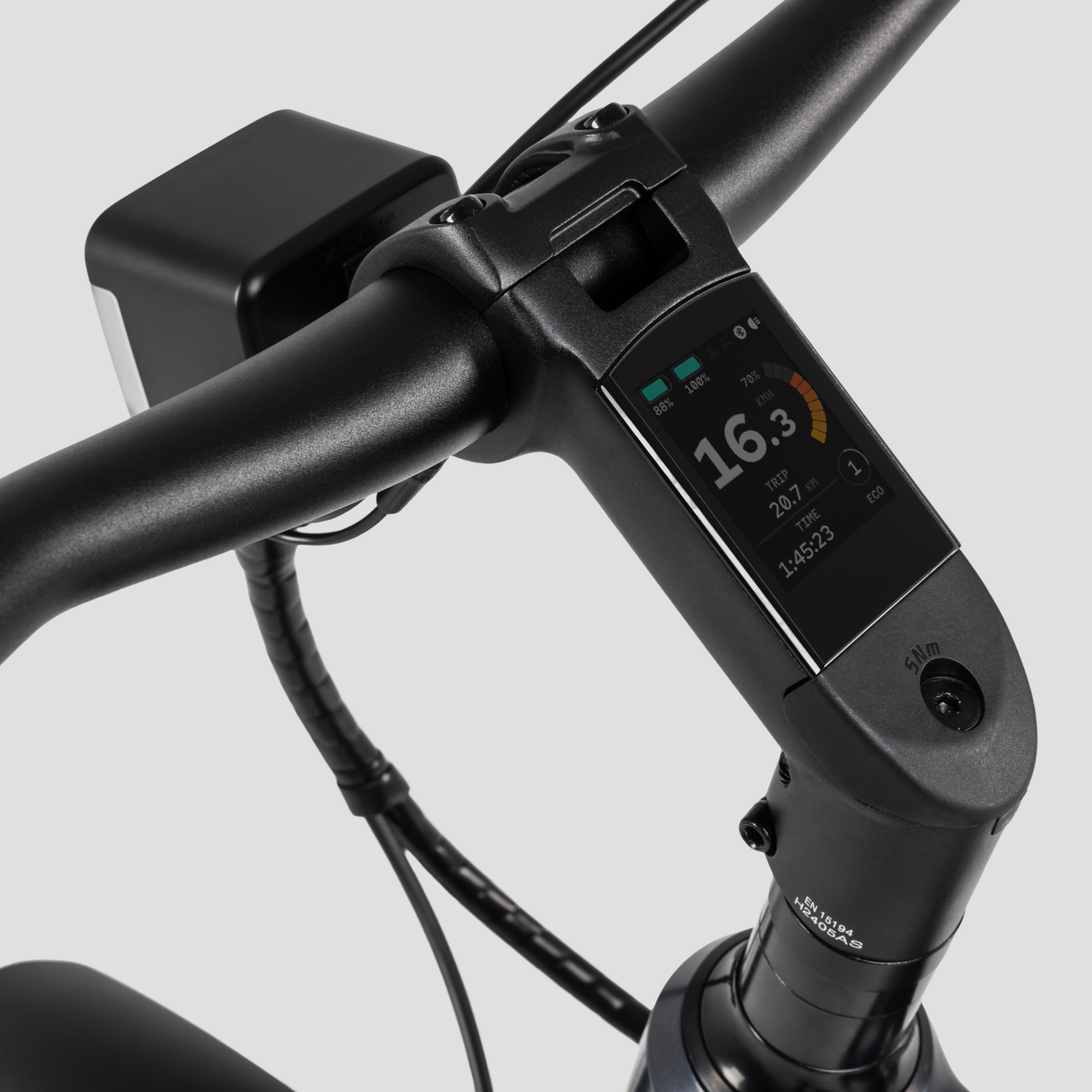

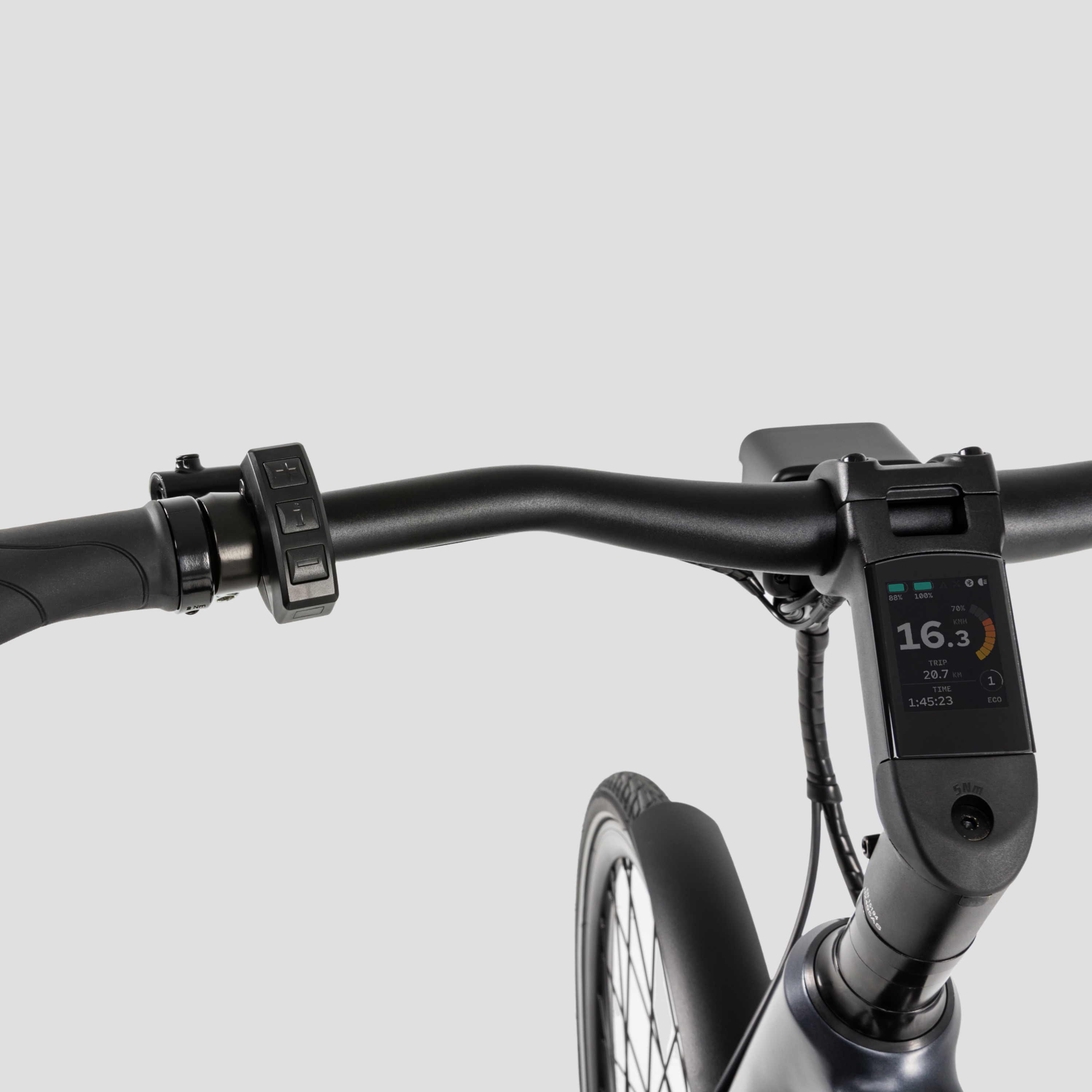

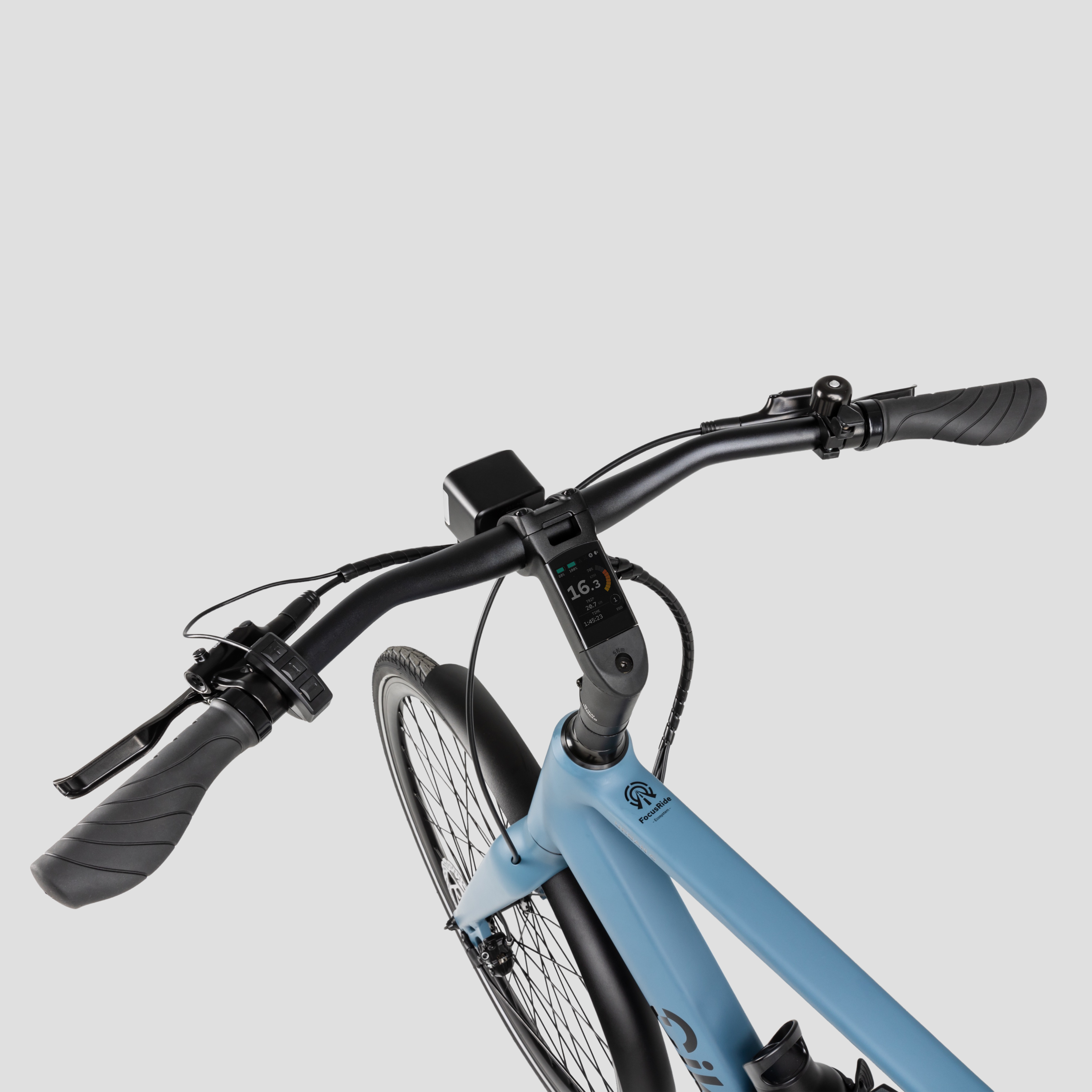

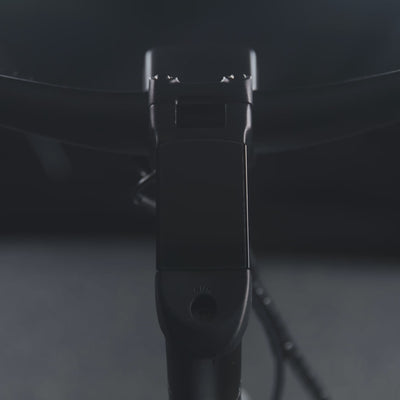

Stem-Integrated Smart Display
Combining a sleek, minimalist design with Bluetooth connectivity, the FocusRide console with a 2” TFT display not only enhances the overall riding experience, but also serves as a central hub of information, providing you with real-time data and total ride control at your fingertips. Enjoy a distraction-free ride, intuitive city navigation and a user-friendly interface to optimise your performance. Conveniently manage all your e-Bike’s functions and seamlessly sync it with Cikada Connect app to custom-tailor your ride, monitor and analyse key metrics and record trips worth remembering.

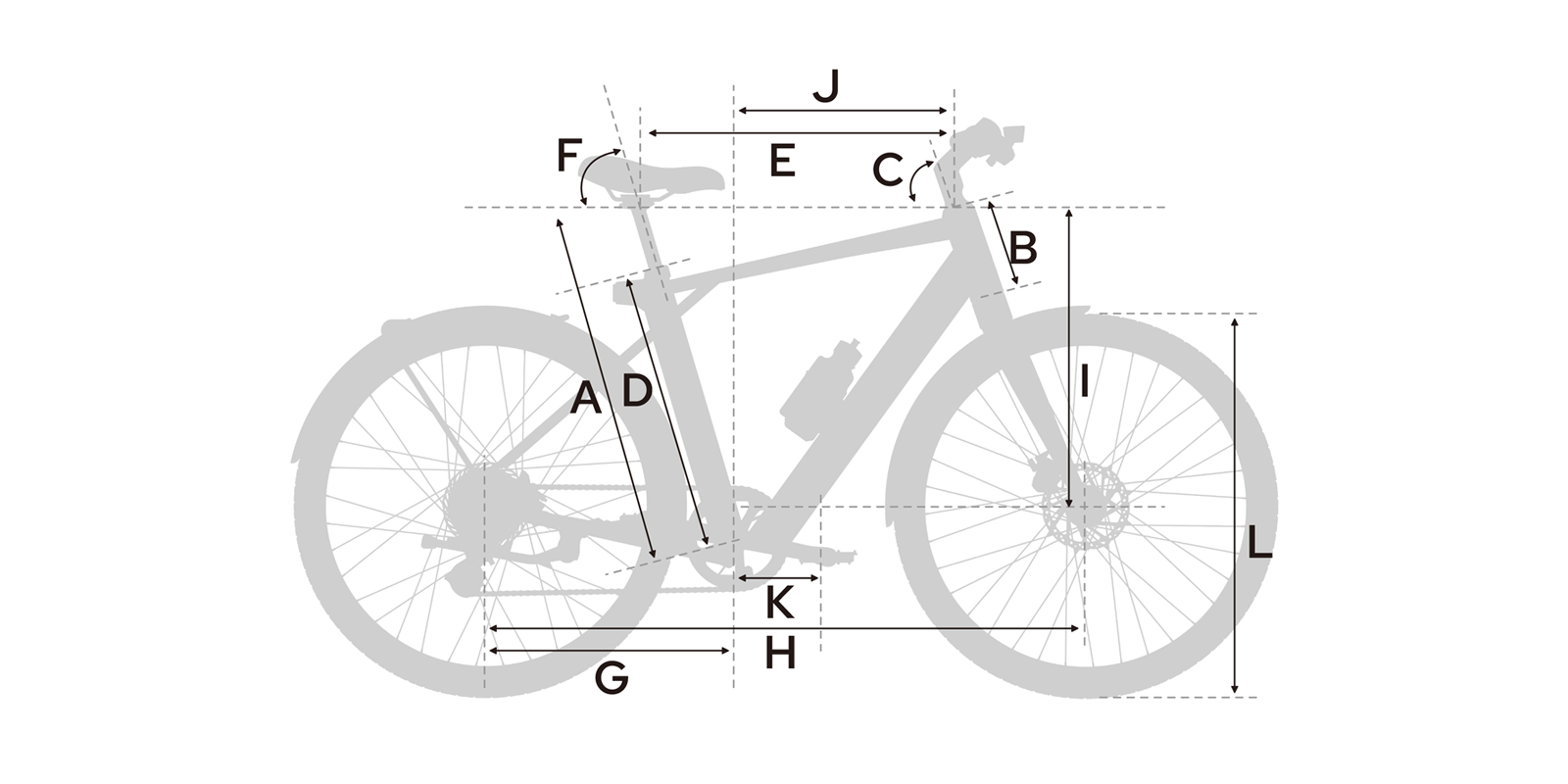

Urban Cruise e-Bike Geometry
Urban C has been designed with ergonomics and sleek aesthetics in mind to seamlessly blend into your way of living.
| Part | Medium | Large | Extra Large |
|---|---|---|---|
| A - Seat Height | Min: 610mm (24″), Max: 750mm (29.5″) | Min: 655mm (25.7″), Max: 805mm (31.6″) | Min: 685mm (27″), Max: 880mm (34.6″) |
| B - Head Tube Length | 175mm (6.8″) | 175mm (6.8″) | 175mm (6.8″) |
| C - Head Tube Angle | 71° | 71° | 71° |
| D - Seat Tube Length | 500mm (19.7″) | 540mm (21.2″) | 580mm (22.8″) |
| E - Top Tube Length | 579.4mm (22.8″) | 605mm (23.8″) | 623.5mm (24.5″) |
| F - Seat Tube Angle | 73.5° | 73.5° | 73.5° |
| G - Chainstay Length | 458.5mm (18″) | 458.5mm (18″) | 458.5mm (18″) |
| H - Wheel Base | 1095mm (43″) | 1121mm (44″) | 1140mm (45″) |
| I - Stack | 606.3mm (23.9″) | 606.3mm (23.9″) | 606.3mm (23.9″) |
| J - Reach | 399.8mm (15.7″) | 425.6mm (16.7″) | 442.9mm (17.4″) |
| K - Crank Length | 170mm (6.7″) | 170mm (6.7″) | 170mm (6.7″) |
| L - Wheel Size | 700C | 700C | 700C |
Detailed Specification
Full specification and detailed explanation of the Urban Cruise e-Bike construction and features.
Power System
Motor: DynaForce ACM4EB0129A0 250W rear hub motor; 40Nm (OLD: 137.5mm/cassette/disc brake)
Battery: Samsung 21700/36V/9.8Ah/353Wh, internal down tube battery; 4-6h charging time

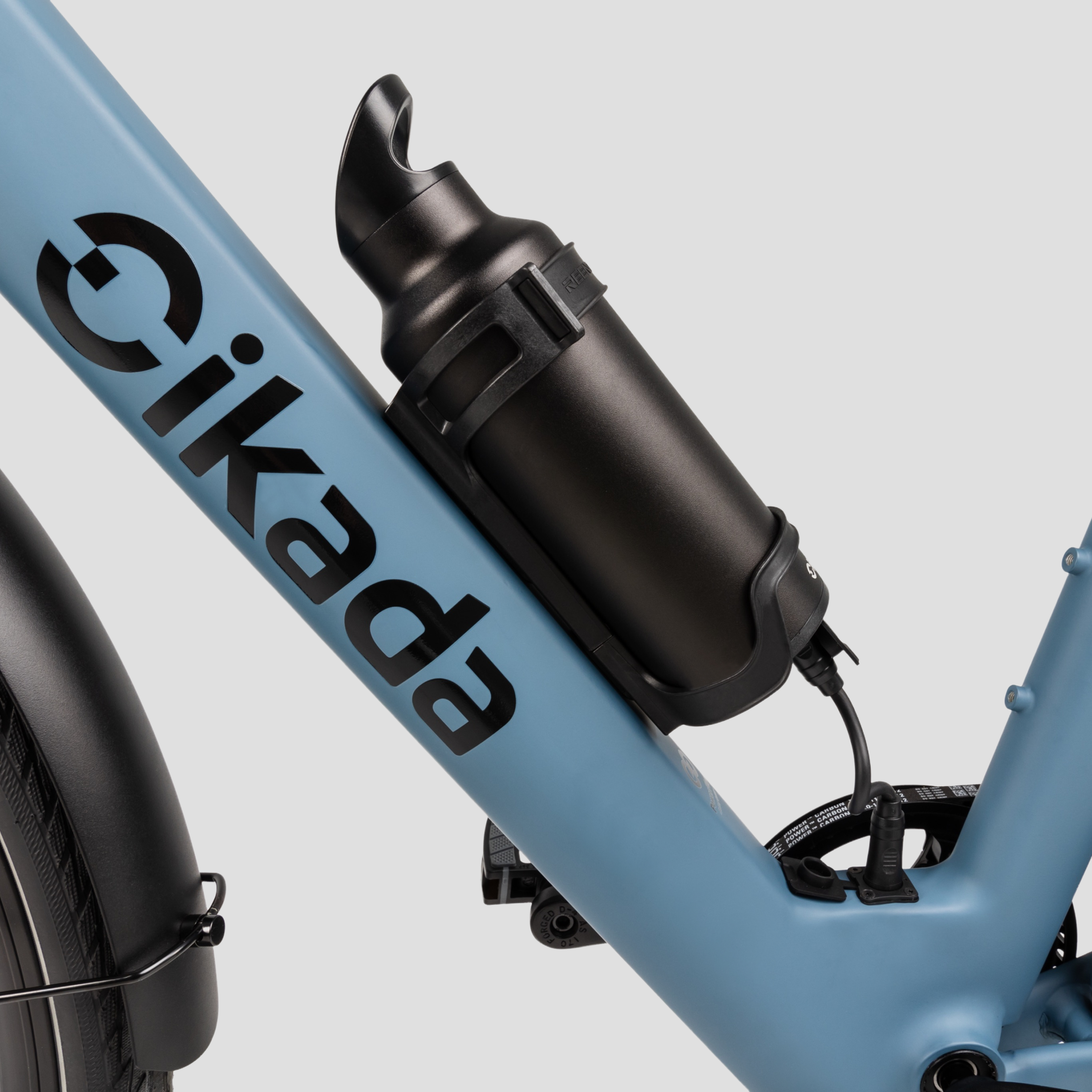

Additional Battery: Samsung 18650/36V/250Wh, water bottle battery (optional extra)
Riding Range: up to 60km (37mi) with main battery and up to 90km (56mi) with the optional water bottle battery
Display: Stem integrated display with Bluetooth (2”/TFT/36V); 3 modes, km/mi switch, walk assistance, battery indicator, lighting control, speed display, time display, motor output power indicator, energy consumption indicator, support levels, information view, error message view
Torque Sensor: Yes
Frameset
Frame: 6061 aluminium (700C x M500mm (19.7”)/ L 540mm (21.2”)/ XL 580mm (22.8”))
Fork: Aluminium 6061 T6, rigid fork, Old - 10mm x 100mm (0.4” x 3.9”)
Wheels
Tyres: Schwalbe Road Cruiser KGuard, 42-622 green 50 EPI
Rims: 700C alloy double wall rim, ETRTO - 622 x 18.8, 36H x 13G
Front Hub: 36H x 13G, O.L.D – 100mm (3.9”), CR-MO hollow axle, W/QR
Rear Hub: Hub motor
Spokes: 13G stainless black spokes, with 14mm brass nipples
Interactivity
Compatible Applications: Cikada Connect app
Drive Train

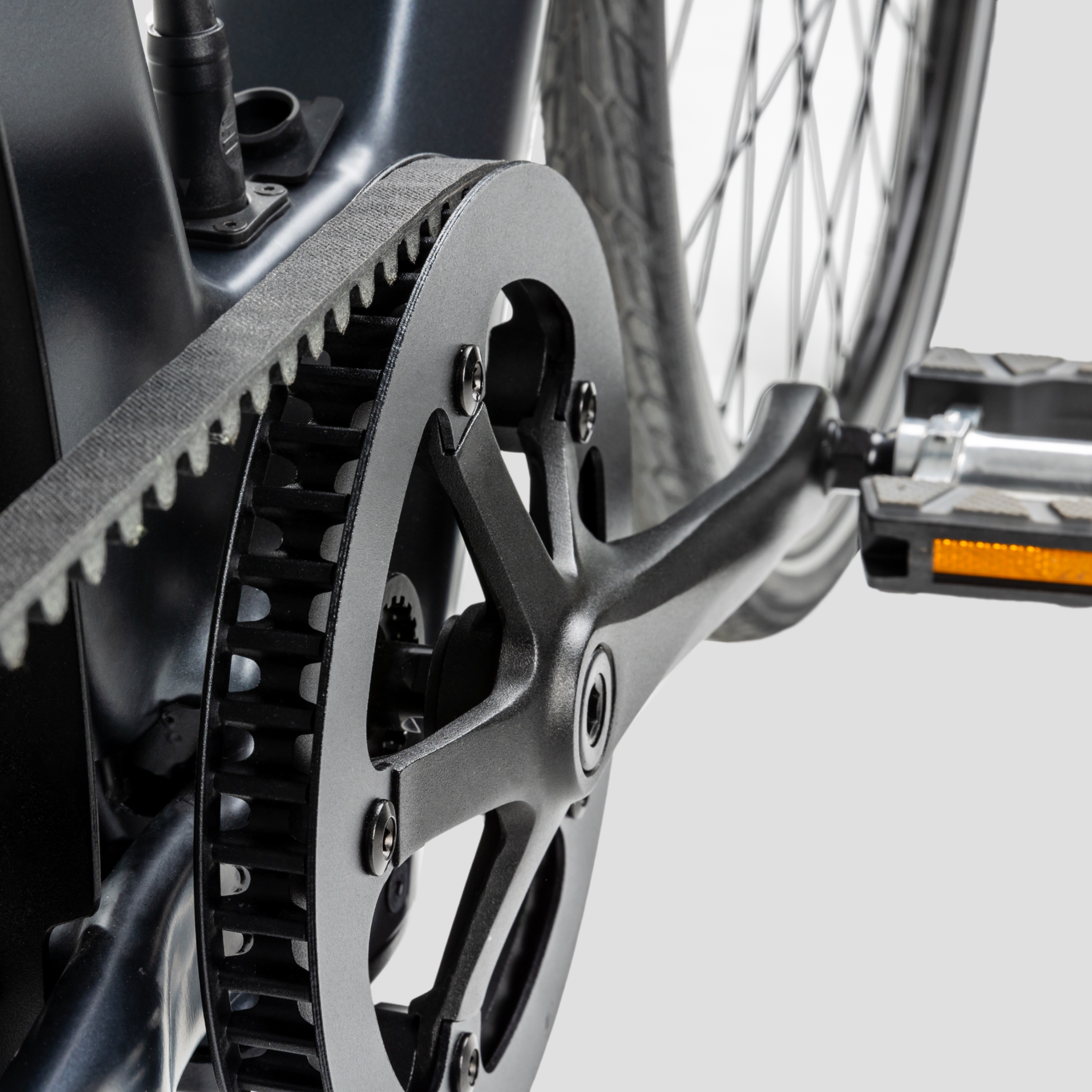

Crankset: Alloy crankset + chainring + spider 5-arm for single torque B.B, crank length – 170mm (6.7”), 11M-52T
Cassette: Rear sprocket, cassette, single speed; CR-MOLY 11M-20T-9K
Chain: Dyaco belt drive

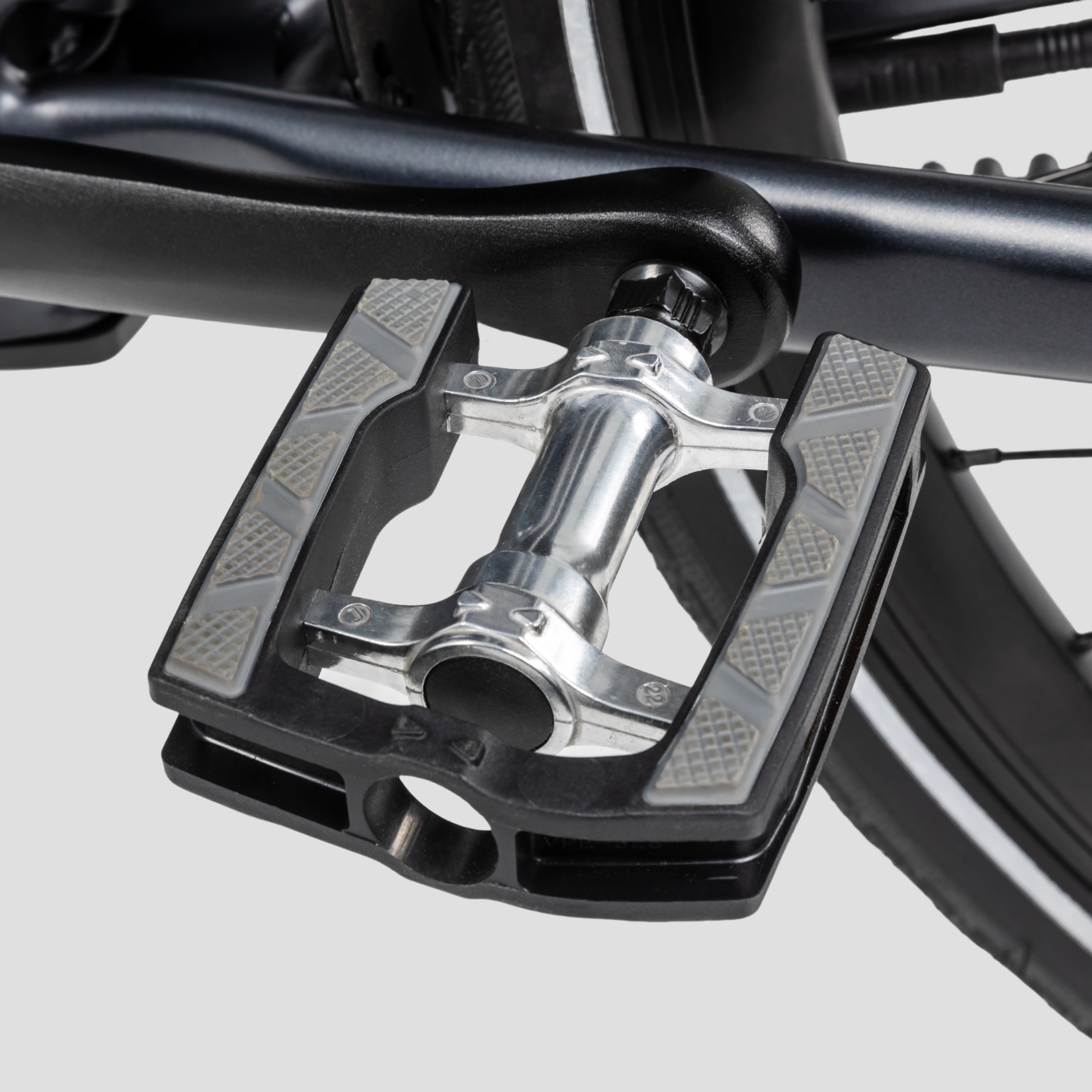

Pedals: Alloy body steel boron axle 9/16”, Size - 106mm x 82.3mm (4.2” x 3.2”), with reflector
Components

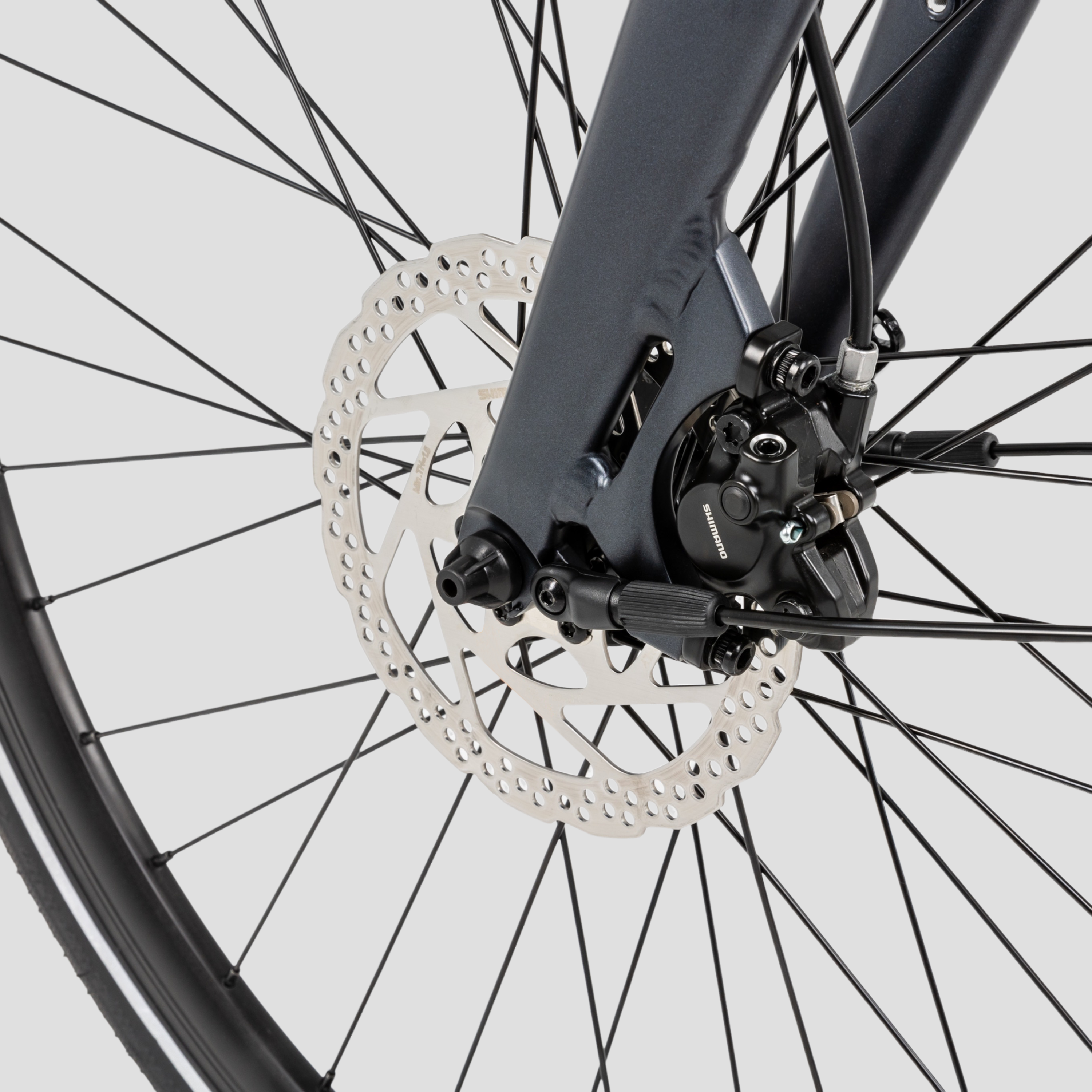

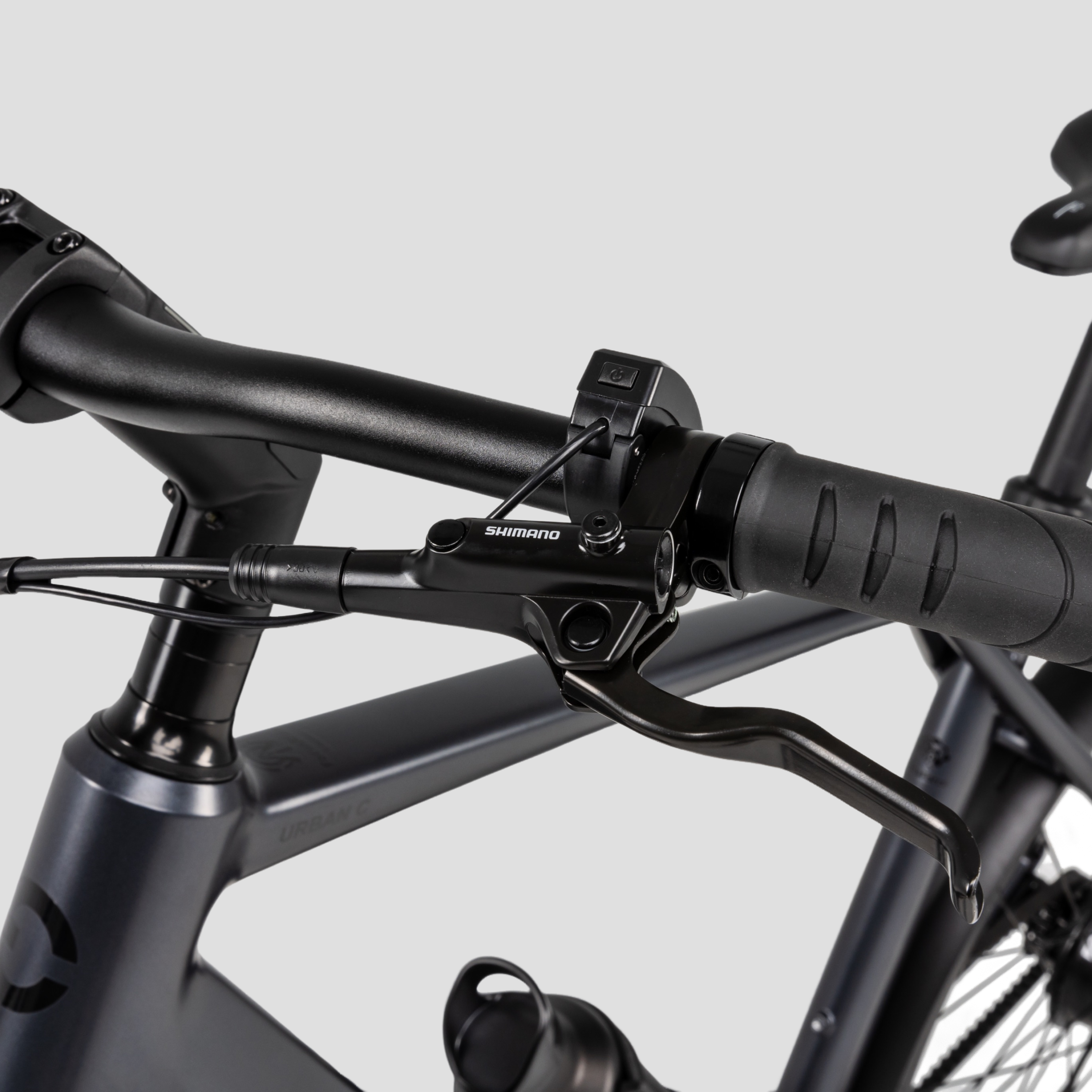

Brakes: Shimano hydraulic disc brakes, 160mm (6.3”) rotor, MT120
Handlebar: Alloy 6061 PG, Width - 630mm (24.8”) M/ 680mm (26.7”) L&XL, Barbore - 31.8mm (1.25”), Backsweep - 15°
Stem: One-piece display stem (Zoom Stem), Barbore - Ø31.8mm (1.25”), Extension - 100mm (3.9”)
Headset: Semi-integrated threadless 1-1/8” x 44/50x55/61x30

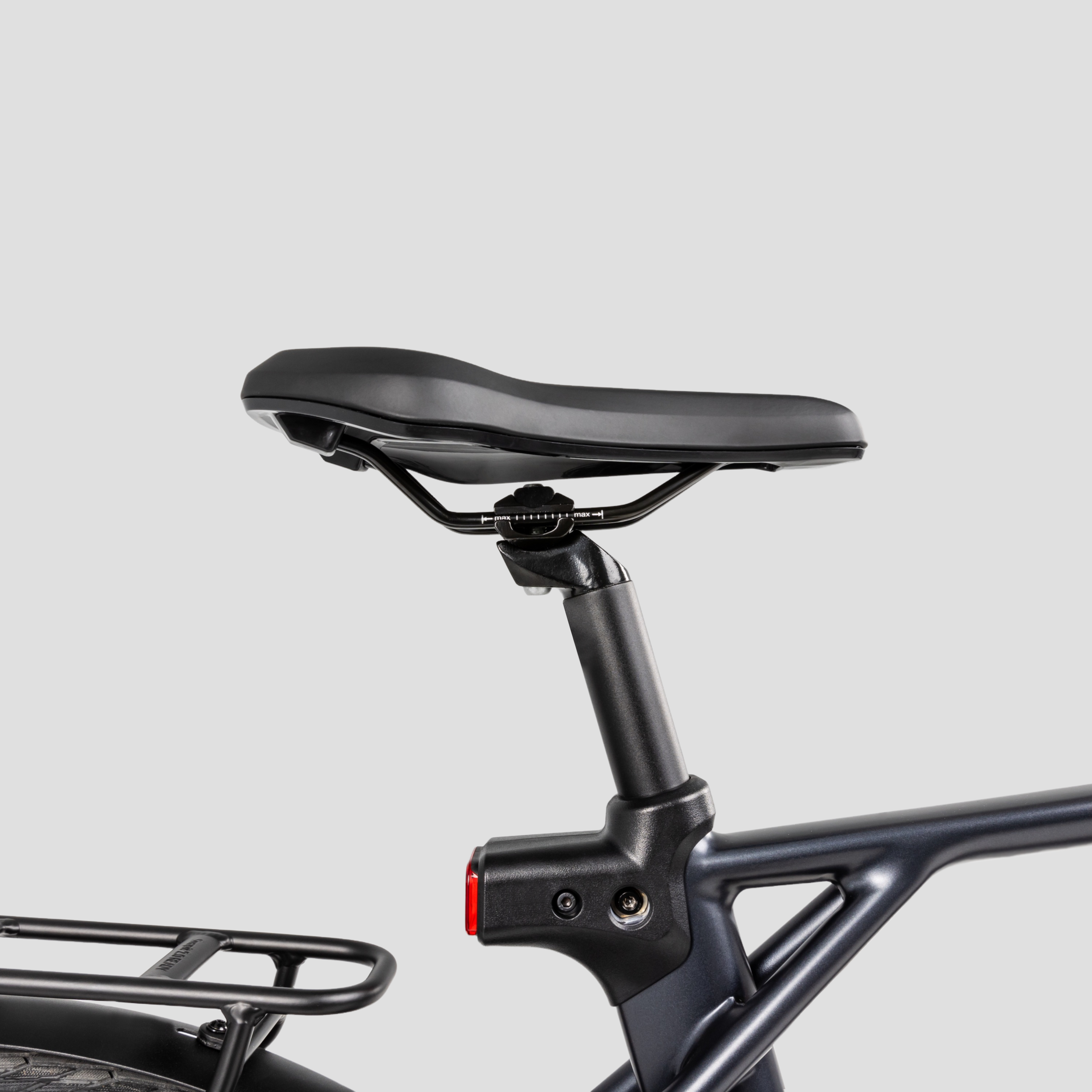

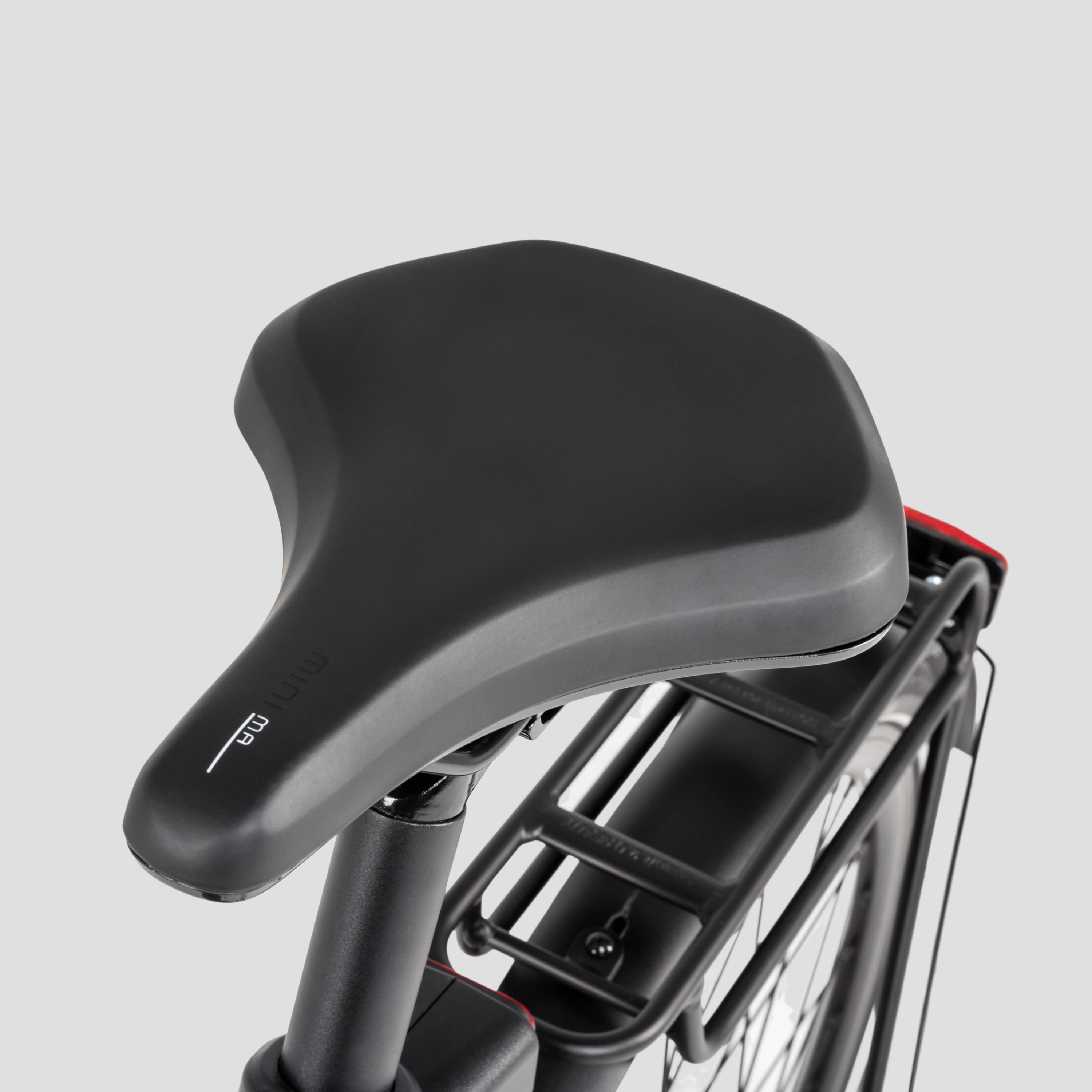

Saddle: Ergonomic saddle; Size - 264mm x 194mm (10.4” x 7.6”), Material - Support PU foam, Base: PP, Leather: Black, seamless, Rail: Steel ED black with scale
Seatpost: Die-casting alloy, Diameter - Ø 31.6, Offset 16mm (0.6”), Length - 300mm (11.8”) M&L/ 350mm (13.7”) XL
Grips: Hard plastic black/ VEXT, 133mm (5.2”), with black plastic clamp, close end
Bottom Bracket: Torque sensor single, BB 73/ JIS
Additional Information
Product Weight: 21kg (46lbs)
Maximum User Weight: 120kg (264.5lbs)
Size Options
M: 20” (50cm) for riders between 5’3” - 5’9” (160cm - 175cm) in height
L: 21” (54cm) for riders between 5’7” - 6’1” (170cm - 185cm) in height
XL: 23" (58cm) for riders between 5’11” - 6’5” (180cm - 195cm) in height
Accessories
Head light

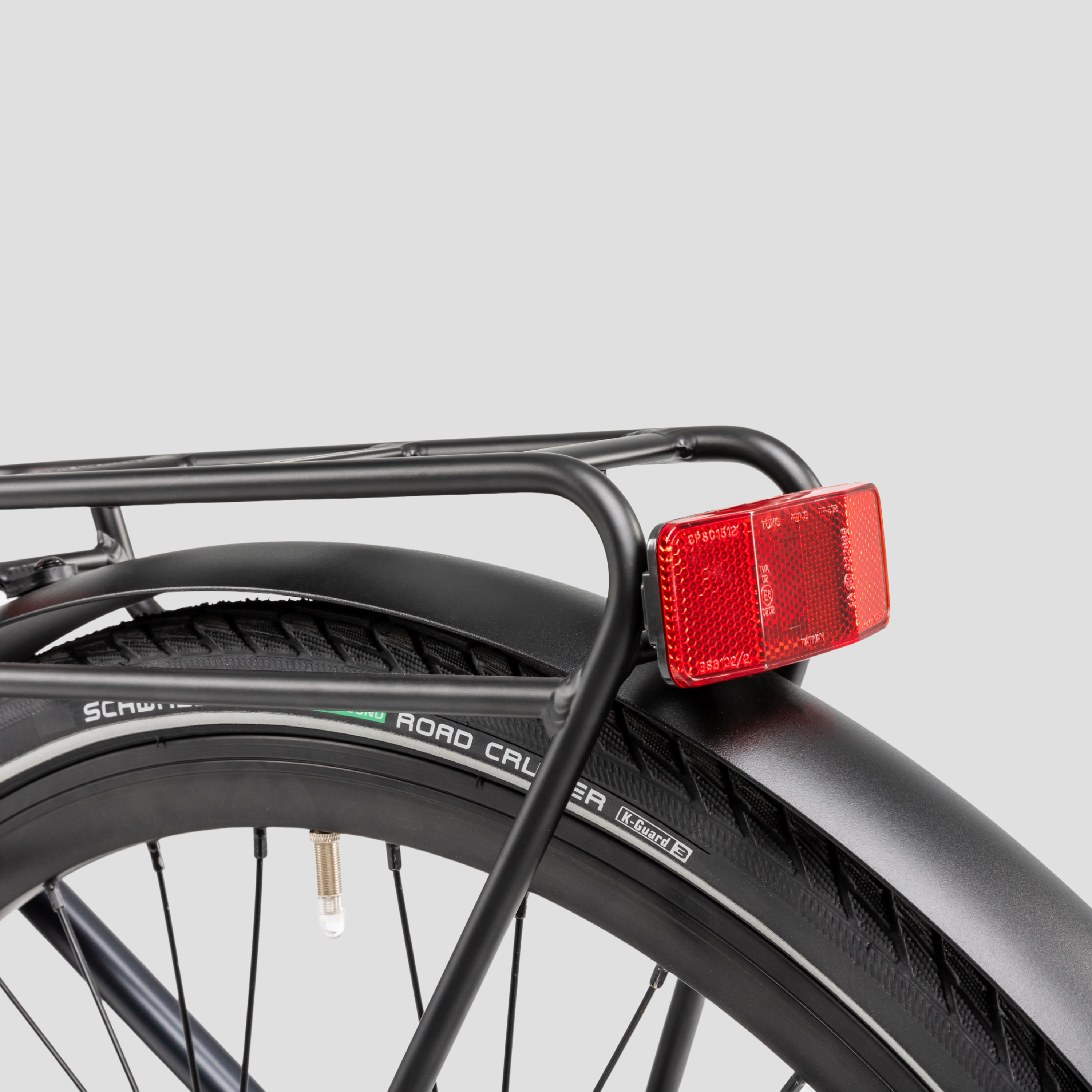

Tail light
Kickstand
Fender
Bell
Warranty
Suspension Fork: 2 years
Electronics (Excluding Battery): 2 years
Battery: Up to 600 charges or 2 years, whichever comes first
Accessories: 1 year
All Other Non-Wearing Components: 2 years
